Amprobe

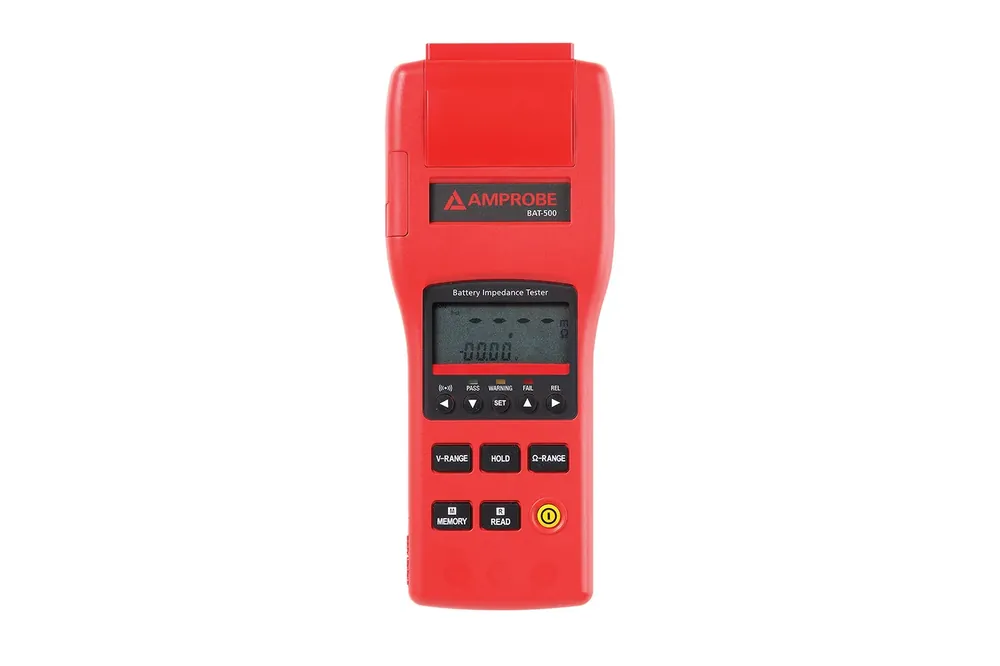

Amprobe BAT-500 Battery Capacity / Impedance Tester
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Battery Types
Alkaline, NiMH, NiCd, Li-ion, lead-acid / compact storage up to 500 Ah
Impedance Ranges
40 mΩ / 400 mΩ / 4 Ω / 40 Ω
Impedance Resolution
10 μΩ to 10 mΩ by range
Impedance Accuracy
±(1% reading ±10 digits)
Voltage Ranges
4 V / 40 V; resolution 1 mV / 10 mV
Voltage Accuracy
±(0.1% rdg ±6 digits)
| المعامل | القيمة |
|---|---|
| Battery Types | Alkaline, NiMH, NiCd, Li-ion, lead-acid / compact storage up to 500 Ah |
| Impedance Ranges | 40 mΩ / 400 mΩ / 4 Ω / 40 Ω |
| Impedance Resolution | 10 μΩ to 10 mΩ by range |
| Impedance Accuracy | ±(1% reading ±10 digits) |
| Voltage Ranges | 4 V / 40 V; resolution 1 mV / 10 mV |
| Voltage Accuracy | ±(0.1% rdg ±6 digits) |
| Test Frequency | 1 kHz ±10% |
| Comparator | 99 sets; pass/fail resistance and voltage thresholds |
| Memory | 500 data sets; 9,600 continuous with PC download |
| Max Input | 50 V DC |
| Power | 6 × AA; ~7 hours |
| Dimensions | 250 × 100 × 45 mm (9.8 × 3.9 × 1.8 in) |
