Amprobe

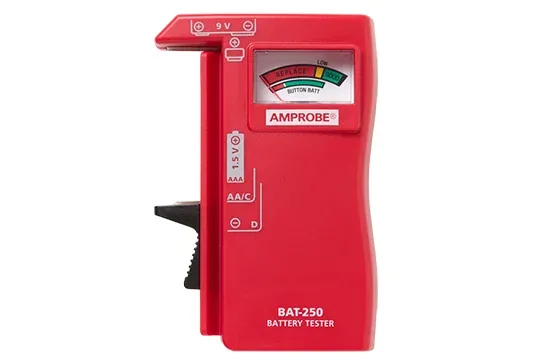

Amprobe BAT-250 Battery Tester
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Type
Handheld analog battery tester (BAT-250)
Battery Sizes
9 V, AAA, AA, C, D, and 1.5 V button/coin/watch
Indication
Color-coded Good / Low / Replace scale
Test Current
I Max at F.S.D. typical 1.5 V: 375 mA; 9 V: 40 mA
Nominal Load
Typical 1.5 V: 4 ohm; 9 V: 215 ohm
Thresholds 15v
Replace <0.9 V; Low 0.9 V; Good >1.0 V
| المعامل | القيمة |
|---|---|
| Type | Handheld analog battery tester (BAT-250) |
| Battery Sizes | 9 V, AAA, AA, C, D, and 1.5 V button/coin/watch |
| Indication | Color-coded Good / Low / Replace scale |
| Test Current | I Max at F.S.D. typical 1.5 V: 375 mA; 9 V: 40 mA |
| Nominal Load | Typical 1.5 V: 4 ohm; 9 V: 215 ohm |
| Thresholds 15v | Replace <0.9 V; Low 0.9 V; Good >1.0 V |
| Thresholds 9v | Replace <5.3 V; Low 5.3 V; Good >6.5 V |
| Dimensions | 4.3 x 2.9 x 1.1 in (110 x 74 x 29 mm) |
| Weight | Approximately 0.11 lb (50 g) |
| Power | No batteries required to operate |
| Certification | CE |
| Document | Amprobe BAT-250 datasheet 6004097 A |
