Yokogawa

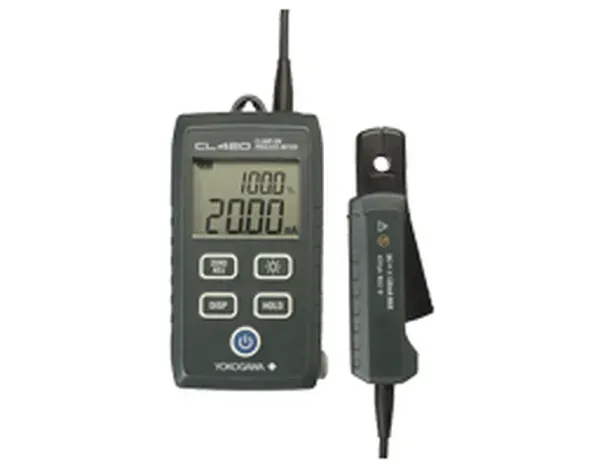

Yokogawa CL420 Clamp On Process Meter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
DC current 20 mA range 0.00 to ±21.49 mA; 100 mA range ±21.0 to ±126.0 mA
Accuracy
20 mA: ±(0.2% rdg + 5 dgt); 100 mA: ±(1.0% rdg + 5 dgt) @ 23 °C ±5 °C
Output
Analog DC voltage OUTPUT 10 mV/mA (recorder/logger)
Supply
Four AA alkaline 1.5 V (LR6); ~60 h continuous (backlight/LED off)
Process connection
Clamp-on (non-contact to loop wire); max conductor diameter 6 mm
Wetted parts
N/A (portable clamp meter)
| المعامل | القيمة |
|---|---|
| Measuring range | DC current 20 mA range 0.00 to ±21.49 mA; 100 mA range ±21.0 to ±126.0 mA |
| Accuracy | 20 mA: ±(0.2% rdg + 5 dgt); 100 mA: ±(1.0% rdg + 5 dgt) @ 23 °C ±5 °C |
| Output | Analog DC voltage OUTPUT 10 mV/mA (recorder/logger) |
| Supply | Four AA alkaline 1.5 V (LR6); ~60 h continuous (backlight/LED off) |
| Process connection | Clamp-on (non-contact to loop wire); max conductor diameter 6 mm |
| Wetted parts | N/A (portable clamp meter) |
| Housing | Portable instrument enclosure |
| Protection | Hand-held; see safety ratings EN61010 |
| Ambient temperature | −10 to +50 °C; ≤80% RH non-condensing |
| Display | 4-digit dual LCD numeric; backlight; LED torch |
| Approvals | EN61010-1; EN61010-2-030; EN61010-2-032 |
| Notes | Specs from Yokogawa Bulletin BUCL420-EN (Clamp-on Process Meter CL420) + TMI product page. Measures 4–20 mA without breaking the loop. |
| Response Time | Approx. 1.5 s (2.5 s across range) |
| Dimensions | 61 × 111 × 40 mm; approx. 290 g including batteries |
