AEMC

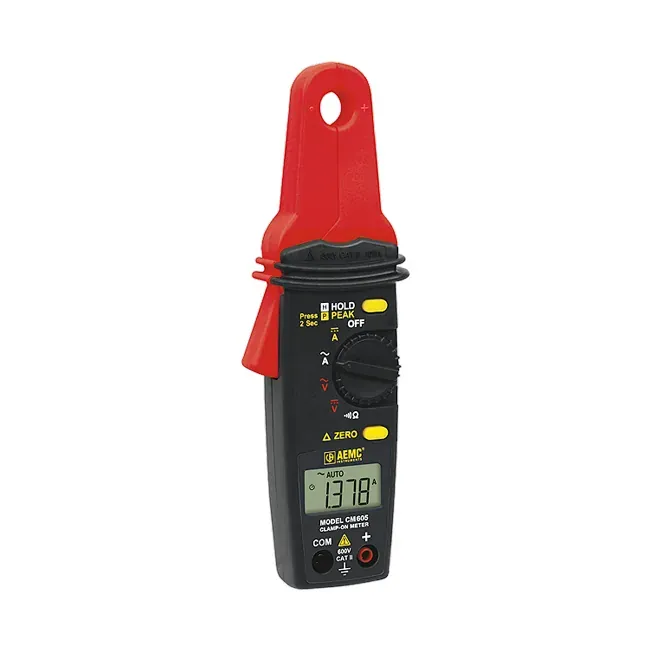

AEMC CM605 100A AC/DC Low Current Clamp-On Meter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Current 10 A / 100 A AC/DC (1 mA resolution on 10 A); Voltage 600 V AC/DC; Resistance to 10 kΩ
Accuracy
AC current 10 A: 2.0% R ±10 cts; Voltage AC 1.5% R ±5 cts (typical per CM605 datasheet)
Output
Analog output 10 mV/A AC & DC via front banana jacks
Supply
2× 1.5 V AAA
Ambient temperature
Operating +32 to 104 °F (0 to +40 °C)
Display
10,000-count LCD; HOLD / PEAK / relative
| المعامل | القيمة |
|---|---|
| Measuring range | Current 10 A / 100 A AC/DC (1 mA resolution on 10 A); Voltage 600 V AC/DC; Resistance to 10 kΩ |
| Accuracy | AC current 10 A: 2.0% R ±10 cts; Voltage AC 1.5% R ±5 cts (typical per CM605 datasheet) |
| Output | Analog output 10 mV/A AC & DC via front banana jacks |
| Supply | 2× 1.5 V AAA |
| Ambient temperature | Operating +32 to 104 °F (0 to +40 °C) |
| Display | 10,000-count LCD; HOLD / PEAK / relative |
| Approvals | CE; IEC/EN 61010 600 V CAT II / 300 V CAT III |
| Mounting | Handheld; jaw opening Ø 0.60 in (15 mm); max cable Ø 0.45 in (12 mm) |
| Sensor type | Low-current AC/DC clamp-on ammeter/voltmeter |
| Notes | Cat. #7000.02 CM605 100 A AC/DC low-current clamp. Specs from aemc.com datasheet 7000-02 + CM605_EN manual. |
| Jaw Opening | 0.60 in (15 mm) |
| Continuity | Buzzer <100 Ω ±25 Ω |
