Rosemount

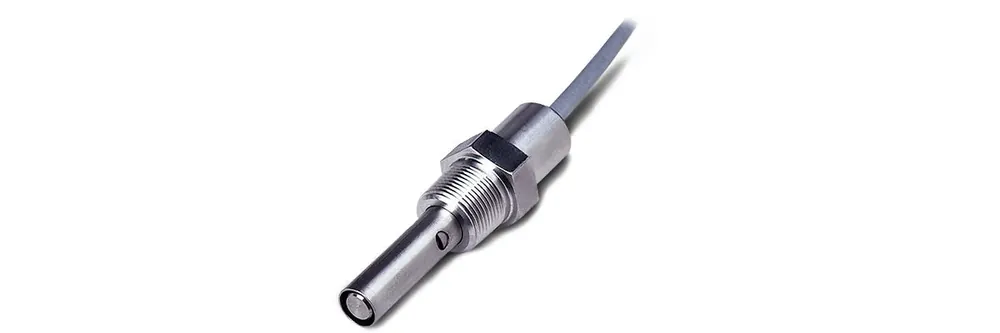

Rosemount 400 / 400VP Endurance Conductivity Sensor
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Process connection
¾-in MNPT male screw-in; optional pipe tee / flow cell
Wetted parts
Titanium electrodes; glass-filled PEEK insulator; 316 SST hex body; Viton O-ring
Media temperature
Standard 0–105 °C (32–221 °F); with integral J-box 0–200 °C (32–392 °F)
Approvals
CE
Type
Endurance contacting conductivity sensor (Rosemount 400 / 400VP)
Cell Constants
0.01 /cm, 0.1 /cm, 1.0 /cm (factory-measured)
| المعامل | القيمة |
|---|---|
| Process connection | ¾-in MNPT male screw-in; optional pipe tee / flow cell |
| Wetted parts | Titanium electrodes; glass-filled PEEK insulator; 316 SST hex body; Viton O-ring |
| Media temperature | Standard 0–105 °C (32–221 °F); with integral J-box 0–200 °C (32–392 °F) |
| Approvals | CE |
| Type | Endurance contacting conductivity sensor (Rosemount 400 / 400VP) |
| Cell Constants | 0.01 /cm, 0.1 /cm, 1.0 /cm (factory-measured) |
| Process Pressure | Max 250 psig (1825 kPa abs) |
| Temperature Compensation | Pt-1000 standard; Pt-100 option code 54 |
| Cable | 400: 10 ft integral standard; 400VP: Variopol VP6 cables sold separately |
| Transmitters | Pairs with Rosemount 1056 / 1066 / 56 / 5081-C analyzers |
| Document | PDS 00813-0100-3400 |
