Endress+Hauser
Endress+Hauser Indumax CLS50D Conductivity Sensor
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Communication
CLS50D Memosens digital to Liquiline CM44x/R or CM42; CLS50 analog to CM42 / Liquisys CLM223/253
Measuring Principle
Inductive (toroidal) conductivity
Conductivity Range
2 μS/cm to 2000 mS/cm (uncompensated)
Temperature Sensor
Integrated coated Pt100, class A
Process Temperature
CLS50D PEEK versions typically −20 to 125 °C (−4 to 260 °F); CLS50 PEEK up to 180 °C (356 °F) on selected versions
Process Pressure
Max 41 bar (595 psi) absolute depending on version (see T-p chart)
| المعامل | القيمة |
|---|---|
| Communication | CLS50D Memosens digital to Liquiline CM44x/R or CM42; CLS50 analog to CM42 / Liquisys CLM223/253 |
| Measuring Principle | Inductive (toroidal) conductivity |
| Conductivity Range | 2 μS/cm to 2000 mS/cm (uncompensated) |
| Temperature Sensor | Integrated coated Pt100, class A |
| Process Temperature | CLS50D PEEK versions typically −20 to 125 °C (−4 to 260 °F); CLS50 PEEK up to 180 °C (356 °F) on selected versions |
| Process Pressure | Max 41 bar (595 psi) absolute depending on version (see T-p chart) |
| Ingress Protection | IP68 / NEMA Type 6 (installed with genuine seal) |
| Materials | PFA or PEEK wetted sensor; adapters PEEK / 1.4571 per order code |
| Cable | Fixed cable; extend with CYK11 (CLS50D) or CLK6 (CLS50); total length up to 55–100 m class per TI |
| Response Time | Conductivity t95 ≤ 2 s; temperature t90 ≤ 7 min (PEEK) |
| Ex Approval | Ex ia IIC T4/T6 options |

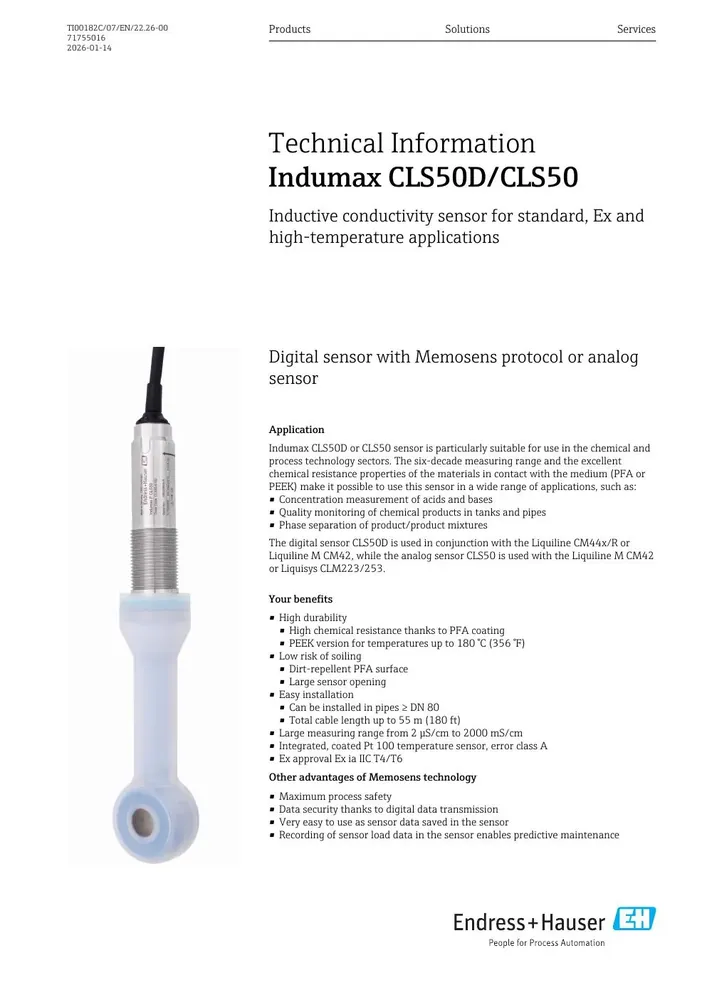

| Document | TI00182C/07/EN/22.26-00; BA00182CEN |
