AEMC

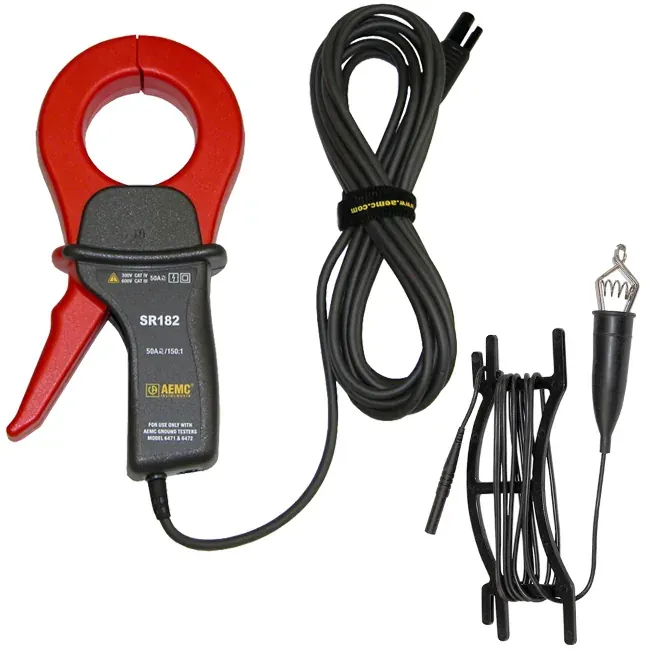

AEMC Model SR182 Current Probe
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
0.5 mA to 40 A AC (auto ranges 0.00 mA–40 A)
Accuracy
Typical ±(3% reading + 2 cts); range/frequency dependent per DS 2135-72
Output
13 ft (4 m) lead with proprietary CA connector for AEMC 6471/6472
Supply
Passive clamp probe (powered by host ground tester)
Protection
IP40 (IEC 529)
Ambient temperature
Operating −10 to +50 °C; storage −20 to +70 °C
| المعامل | القيمة |
|---|---|
| Measuring range | 0.5 mA to 40 A AC (auto ranges 0.00 mA–40 A) |
| Accuracy | Typical ±(3% reading + 2 cts); range/frequency dependent per DS 2135-72 |
| Output | 13 ft (4 m) lead with proprietary CA connector for AEMC 6471/6472 |
| Supply | Passive clamp probe (powered by host ground tester) |
| Protection | IP40 (IEC 529) |
| Ambient temperature | Operating −10 to +50 °C; storage −20 to +70 °C |
| Approvals | 600 V CAT III, Pollution Degree 2; IEC 1010-2-032; dielectric 5550 V |
| Mounting | Handheld clamp; polycarbonate case/jaws |
| Sensor type | AC current clamp probe for selective/stakeless ground testing (SR182) |
| Resolution | 0.01 mA to 0.1 A (range dependent) |
| Frequency Range | 16 to 400 Hz |
| Jaw Opening | 2.25 in (57 mm) max; conductor ≤2.05 in (52 mm) |
| Dimensions | 4.37 × 8.50 × 1.77 in (111 × 216 × 45 mm); 1.21 lb (550 g) |
