MadgeTech

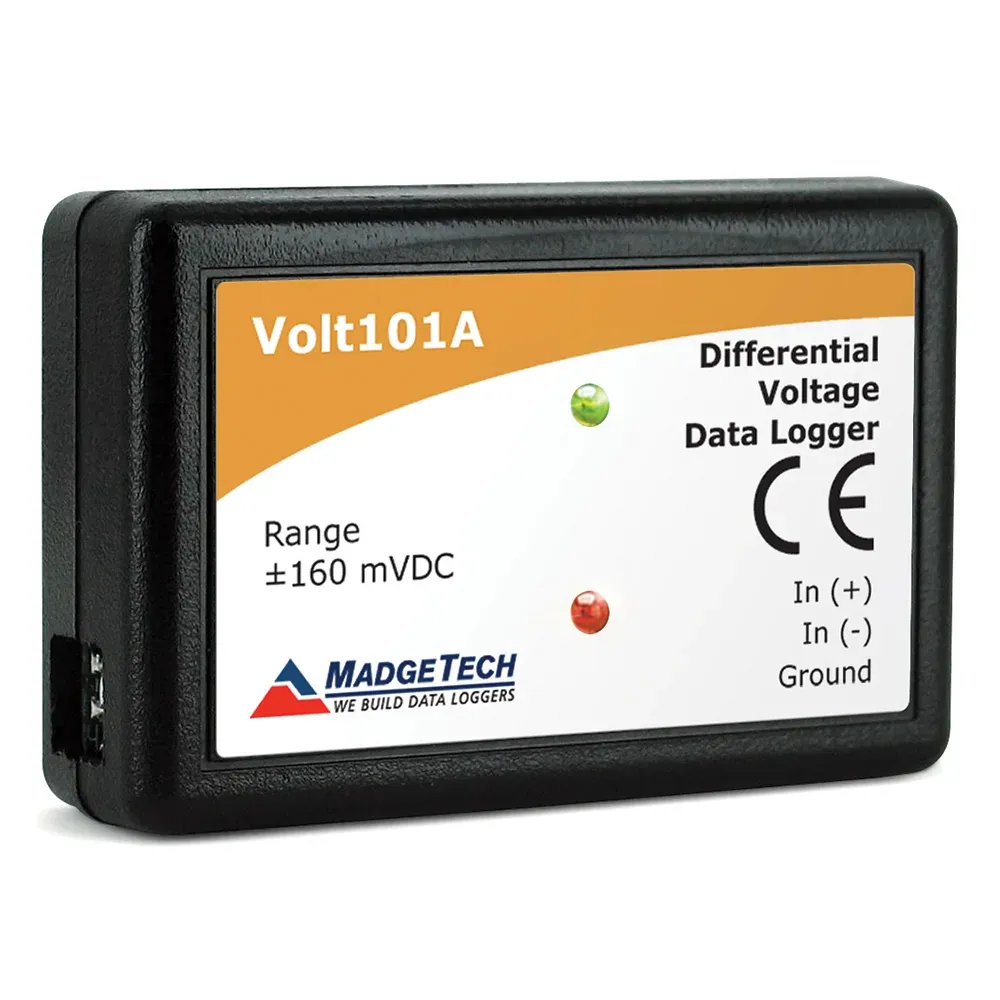

MadgeTech Volt101A Voltage Data Logger
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measurement
Low-level DC voltage data logger
Ranges
±160 mV; ±3.2 V; −8…+24 V; −8…+32 V (model/channel dependent)
Memory
Up to 2,095,104 timestamped readings
Sample Rate
4 Hz to 1 reading / 24 hours
Battery Life
Typical 10-year battery life at 15-minute interval
Interface
Removable screw terminals; USB download via IFC200
| المعامل | القيمة |
|---|---|
| Measurement | Low-level DC voltage data logger |
| Ranges | ±160 mV; ±3.2 V; −8…+24 V; −8…+32 V (model/channel dependent) |
| Memory | Up to 2,095,104 timestamped readings |
| Sample Rate | 4 Hz to 1 reading / 24 hours |
| Battery Life | Typical 10-year battery life at 15-minute interval |
| Interface | Removable screw terminals; USB download via IFC200 |
| Software | MadgeTech 4 |
| Form Factor | Compact standalone logger |
| Document | DOC-1210009-00 specification sheet |
| Application | DC voltage trend logging for process / equipment monitoring |
| Calibration | Standard MadgeTech calibration services available |
| Connectivity | USB via IFC200 interface cable |
