MadgeTech

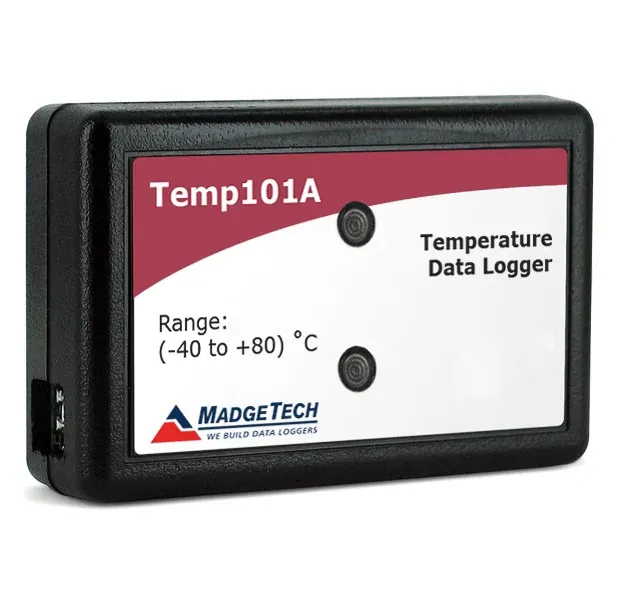

MadgeTech Temp101A Temperature Data Logger
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Type
Compact ambient temperature data logger (Temp101A)
Temperature Range
−40…+80 °C (−40…+176 °F)
Temperature Accuracy
±0.5 °C (±0.9 °F) in central band; see specification sheet
Temperature Resolution
0.01 °C class (precision RTD element)
Memory
2,095,104 readings; memory wrap; multiple start/stop
Reading Rate
1 reading every second up to 1 reading every 24 hours (software configurable)
| المعامل | القيمة |
|---|---|
| Type | Compact ambient temperature data logger (Temp101A) |
| Temperature Range | −40…+80 °C (−40…+176 °F) |
| Temperature Accuracy | ±0.5 °C (±0.9 °F) in central band; see specification sheet |
| Temperature Resolution | 0.01 °C class (precision RTD element) |
| Memory | 2,095,104 readings; memory wrap; multiple start/stop |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours (software configurable) |
| Battery | 3.6 V lithium; ~10 years typical; battery-life indicator |
| Interface | USB via IFC200 interface cable; MadgeTech 4 Software |
| Features | Pushbutton start/stop; delayed start up to 18 months; programmable high/low alarms; optional password |
| Document | Temp101A Specification Sheet DOC-1214009-00 + Product User Guide |
| Application | Cold chain/shipping; warehouse mapping; HVAC; refrigerator/freezer monitoring |
| Form Factor | Matchbox-size portable enclosure for tight spaces |
