Time Electronics

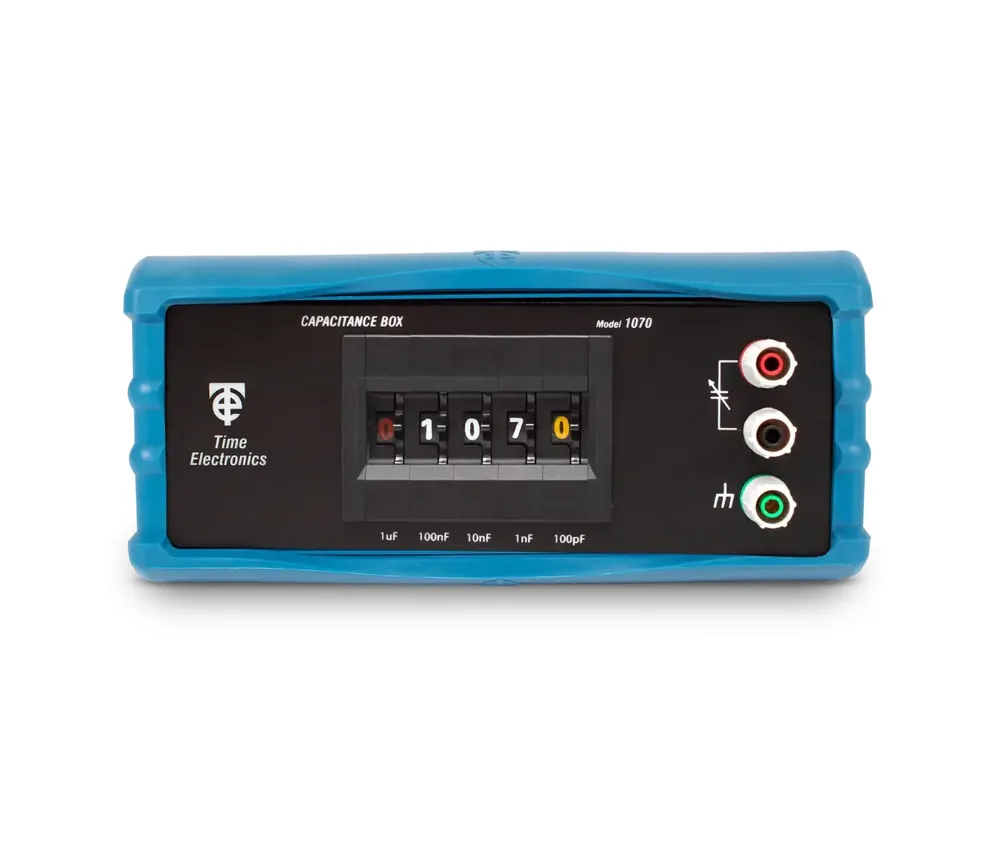

Time Electronics 1070 Capacitance Decade Box
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
1% (±5 pF on 100 pF / 1 nF decades @ 1 kHz)
Resolution
100 pF steps (9 steps per decade; 5 decades)
Residual Capacitance
Approximately 40 pF
Max Voltage
300 V DC / 200 V AC (mica decades); 100 V DC / 72–115 V AC (polycarbonate)
Capacitor Type
Silver mica (lower decades); polycarbonate (100 nF, 1 μF)
Insulation Resistance
>50 GΩ (mica); >30 GΩ (polycarbonate)
| المعامل | القيمة |
|---|---|
| Accuracy | 1% (±5 pF on 100 pF / 1 nF decades @ 1 kHz) |
| Resolution | 100 pF steps (9 steps per decade; 5 decades) |
| Residual Capacitance | Approximately 40 pF |
| Max Voltage | 300 V DC / 200 V AC (mica decades); 100 V DC / 72–115 V AC (polycarbonate) |
| Capacitor Type | Silver mica (lower decades); polycarbonate (100 nF, 1 μF) |
| Insulation Resistance | >50 GΩ (mica); >30 GΩ (polycarbonate) |
| Terminals | Safety terminals; 4 mm shrouded / standard plugs / bare wires / spade |
| Dimensions Weight | W 215 × H 100 × D 120 mm / 0.8 kg |
| Features | Colour-coded digits; removable protective rubber cover; bi-polar working |
