Time Electronics

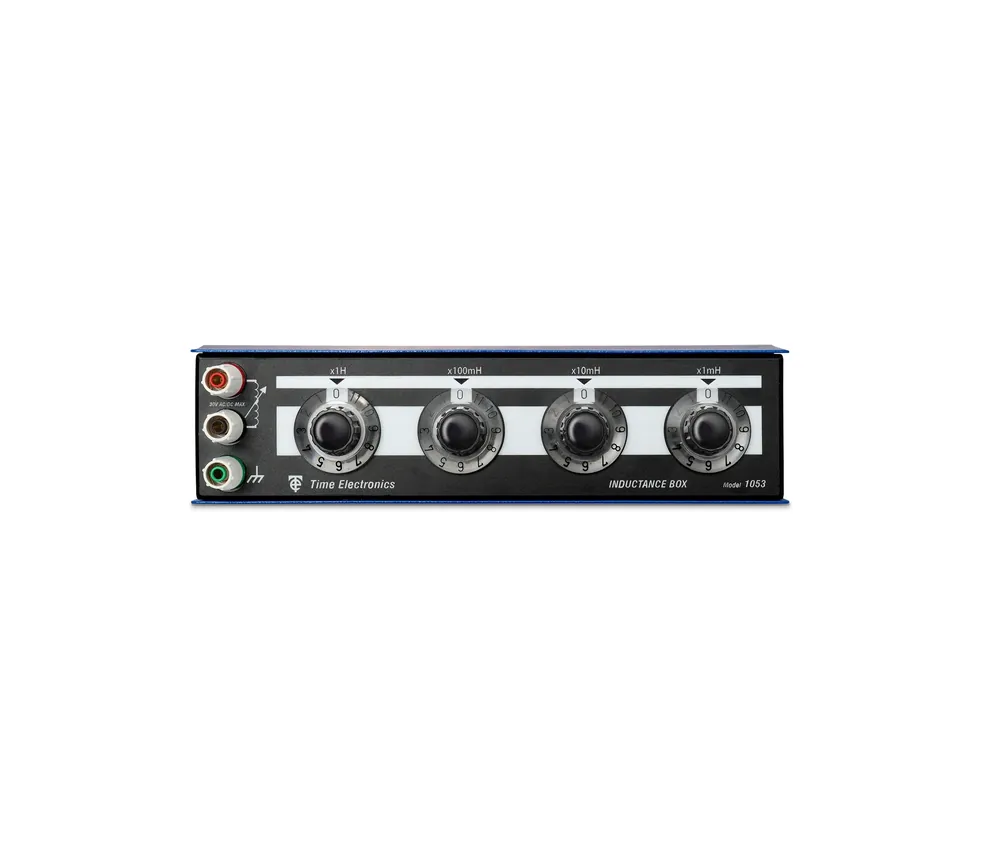

Time Electronics 1053 Inductance Decade Box
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
±3% at 1 kHz
Type
4-decade precision inductance decade box
Construction
Custom wound high-permeability ferrite core inductors; fully screened metal case
Terminals
Safety terminals for 4 mm shrouded plugs / wires / spades
Readout
In-line numerical decade dials
Current Limits
Decade current limits per datasheet (typ. tens to hundreds of mA by decade)
| المعامل | القيمة |
|---|---|
| Accuracy | ±3% at 1 kHz |
| Type | 4-decade precision inductance decade box |
| Construction | Custom wound high-permeability ferrite core inductors; fully screened metal case |
| Terminals | Safety terminals for 4 mm shrouded plugs / wires / spades |
| Readout | In-line numerical decade dials |
| Current Limits | Decade current limits per datasheet (typ. tens to hundreds of mA by decade) |
| Dimensions | Approx. W 248 × H 62 × D 102 mm / ~0.8 kg |
| Document | 1053 Data Sheet + 1053 User Manual |
| Application | Filter design, experimental substitution, DC–DC converter design, education/lab |
| Stability | High stability; insignificant influence from external magnetic fields |
| Model Codes | 1053 Inductance Decade Box; optional calibration certificates |
