AEMC

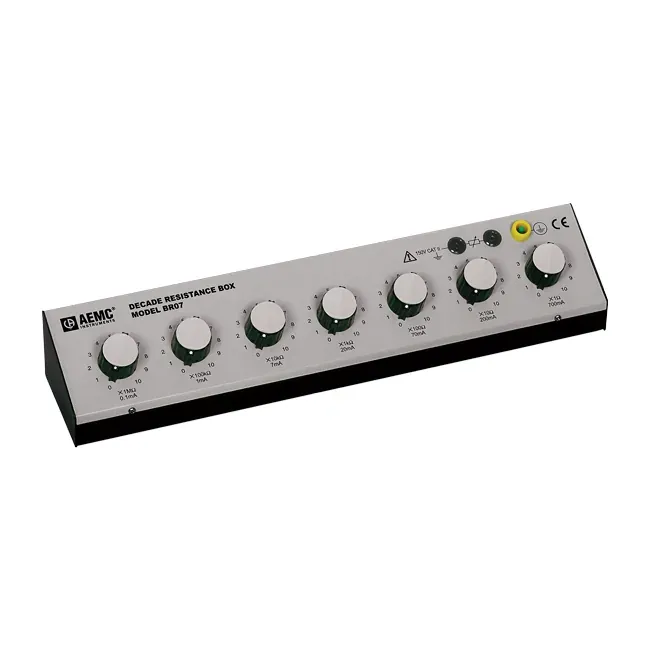

AEMC BR07 Resistance Decade Box
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Seven decades, 1 Ω to 11.11111 MΩ (1 Ω + 10 Ω + … + 10 MΩ decades)
Accuracy
1% ±10 mΩ
Output
Passive resistance decade (Ø4 mm safety terminals); no active process output
Supply
Passive (no supply required)
Protection
IP40
Ambient temperature
Operating −10 to +55 °C (14 to 131 °F); storage −40 to +70 °C
| المعامل | القيمة |
|---|---|
| Measuring range | Seven decades, 1 Ω to 11.11111 MΩ (1 Ω + 10 Ω + … + 10 MΩ decades) |
| Accuracy | 1% ±10 mΩ |
| Output | Passive resistance decade (Ø4 mm safety terminals); no active process output |
| Supply | Passive (no supply required) |
| Protection | IP40 |
| Ambient temperature | Operating −10 to +55 °C (14 to 131 °F); storage −40 to +70 °C |
| Display | N/A (rotary decade switches) |
| Approvals | EN 61010-2-03; 150 V CAT II / 50 V CAT III; Pollution Degree 2 |
| Mounting | Bench-top; 410 × 86 × 76 mm; weight 1.4 kg |
| Sensor type | Benchtop resistance decade box (metal enclosure) |
| Notes | Cat. #2131.25. Specs from aemc.com BR07 product page + datasheet 2131-25. Prices not imported. No Instrumart. |
| Max Current | 700 mA (1 Ω decade) down to 0.1 mA (1 MΩ decade) |
