Time Electronics

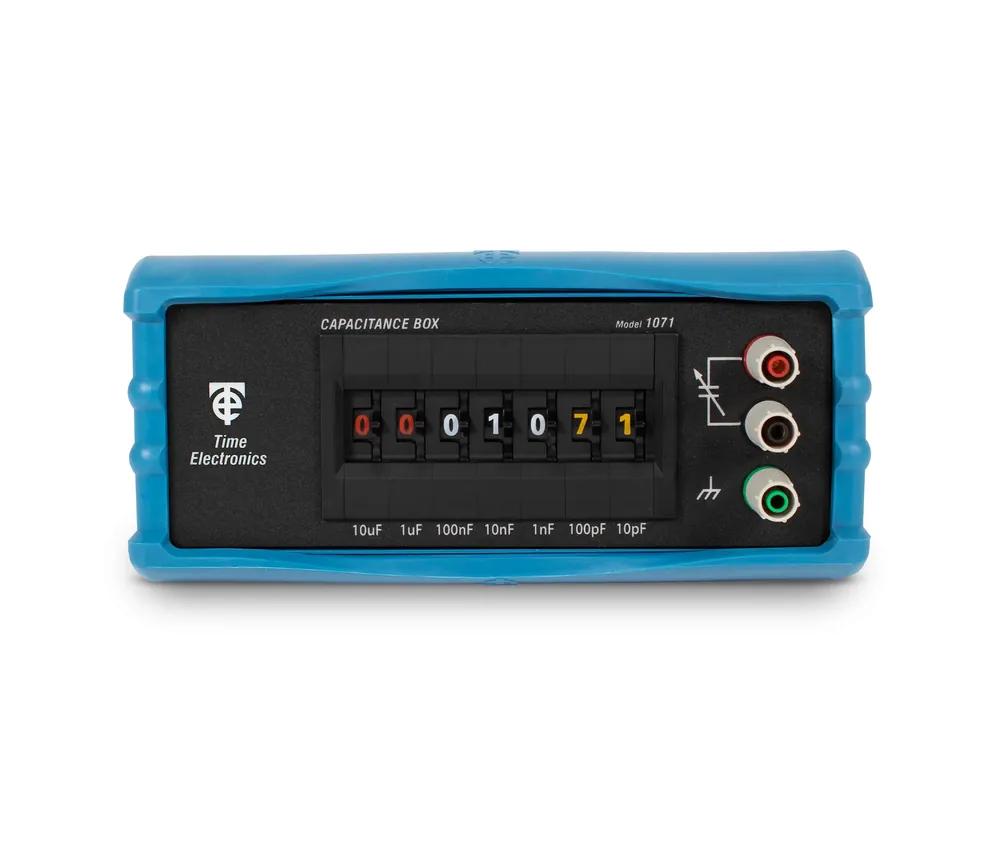

Time Electronics 1071 Capacitance Decade Box
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
1% @ 1 kHz (5% on 10 μF decade); residual ≈55 pF
Type
7-decade capacitance decade box (Time Electronics 1071)
Resolution
10 pF steps (9 steps per decade)
Features
Bi-polar working; colour-coded digits (μF red / nF white / pF yellow); safety terminals; removable rubber cover
Max Voltage
Up to 300 V DC / 200 V AC on low decades (see datasheet per decade)
Housing
Screened metal case with protective rubber cover; optional 9026 carry case
| المعامل | القيمة |
|---|---|
| Accuracy | 1% @ 1 kHz (5% on 10 μF decade); residual ≈55 pF |
| Type | 7-decade capacitance decade box (Time Electronics 1071) |
| Resolution | 10 pF steps (9 steps per decade) |
| Features | Bi-polar working; colour-coded digits (μF red / nF white / pF yellow); safety terminals; removable rubber cover |
| Max Voltage | Up to 300 V DC / 200 V AC on low decades (see datasheet per decade) |
| Housing | Screened metal case with protective rubber cover; optional 9026 carry case |
| Application | Industry and education capacitance simulation/calibration |
| Document | 1071 Datasheet + 1071 User Manual |
