Endress+Hauser

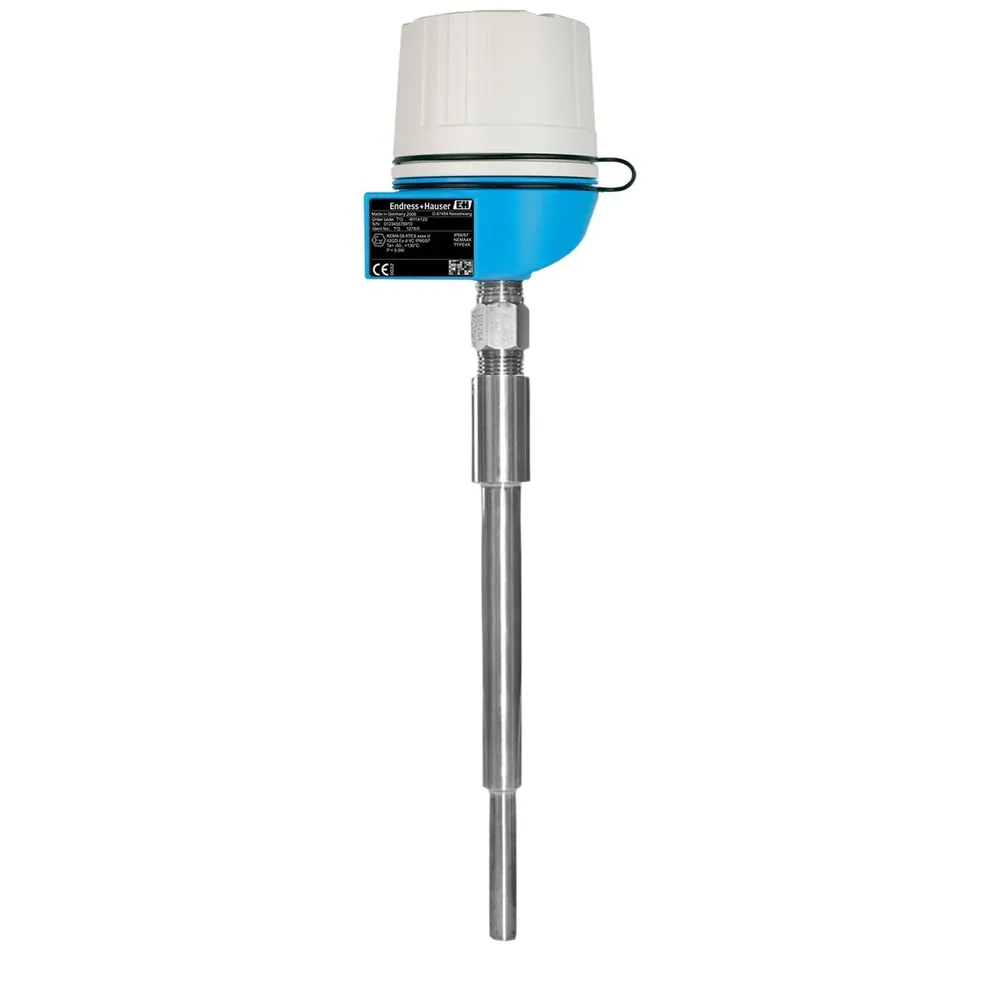

Endress+Hauser T53 Explosion-proof TC Thermometer with Thermowell
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Thermocouple types J/K/E/T/N per IEC; e.g. Type K/E to high process temps, Type T to ~370 °C (700 °F) class tables in TI00127R
Accuracy
IEC class 1 or 2 tolerances by TC type (e.g. Type K special/class 1 tighter band); optional iTEMP transmitter long-term stability ≤0.05%/year
Output
Direct TC mV or via head/field transmitter: 4–20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus; optional Bluetooth
Supply
When transmitter fitted: loop-powered / fieldbus per iTEMP selection
Process connection
Thermowell threaded ½" NPT / ¾" NPT / flanged styles; spring-loaded insert ½" travel
Wetted parts
MgO-insulated TC sheath and thermowell materials per order (SS / exotic options in TI)
| المعامل | القيمة |
|---|---|
| Measuring range | Thermocouple types J/K/E/T/N per IEC; e.g. Type K/E to high process temps, Type T to ~370 °C (700 °F) class tables in TI00127R |
| Accuracy | IEC class 1 or 2 tolerances by TC type (e.g. Type K special/class 1 tighter band); optional iTEMP transmitter long-term stability ≤0.05%/year |
| Output | Direct TC mV or via head/field transmitter: 4–20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus; optional Bluetooth |
| Supply | When transmitter fitted: loop-powered / fieldbus per iTEMP selection |
| Process connection | Thermowell threaded ½" NPT / ¾" NPT / flanged styles; spring-loaded insert ½" travel |
| Wetted parts | MgO-insulated TC sheath and thermowell materials per order (SS / exotic options in TI) |
| Housing | Explosion-proof terminal head / enclosure (US-style modular) |
| Protection | Head/enclosure protection per selected housing (XP assembly) |
| Media temperature | Process temperature capability depends on TC type, thermowell, and extension/lagging length (charts in TI; high-temp examples to ~570 °C / 1060 °F class) |
| Ambient temperature | Terminal head ambient tables in TI; SIL-mode HART transmitter examples −40 to 70 °C |
| Communication | Analog 4–20 mA; HART; PROFIBUS PA; FOUNDATION Fieldbus; Bluetooth optional |
| Approvals | CSA C/US XP; FM/CSA XP Class I Div. 1; CE |
| Hazardous area | Explosion-proof Class I Div. 1 assemblies (FM/CSA) |
| Notes | Specs from E+H TI00127R/09/EN/16.23-00 (T53/T54/T55) and product page. |
