Rosemount

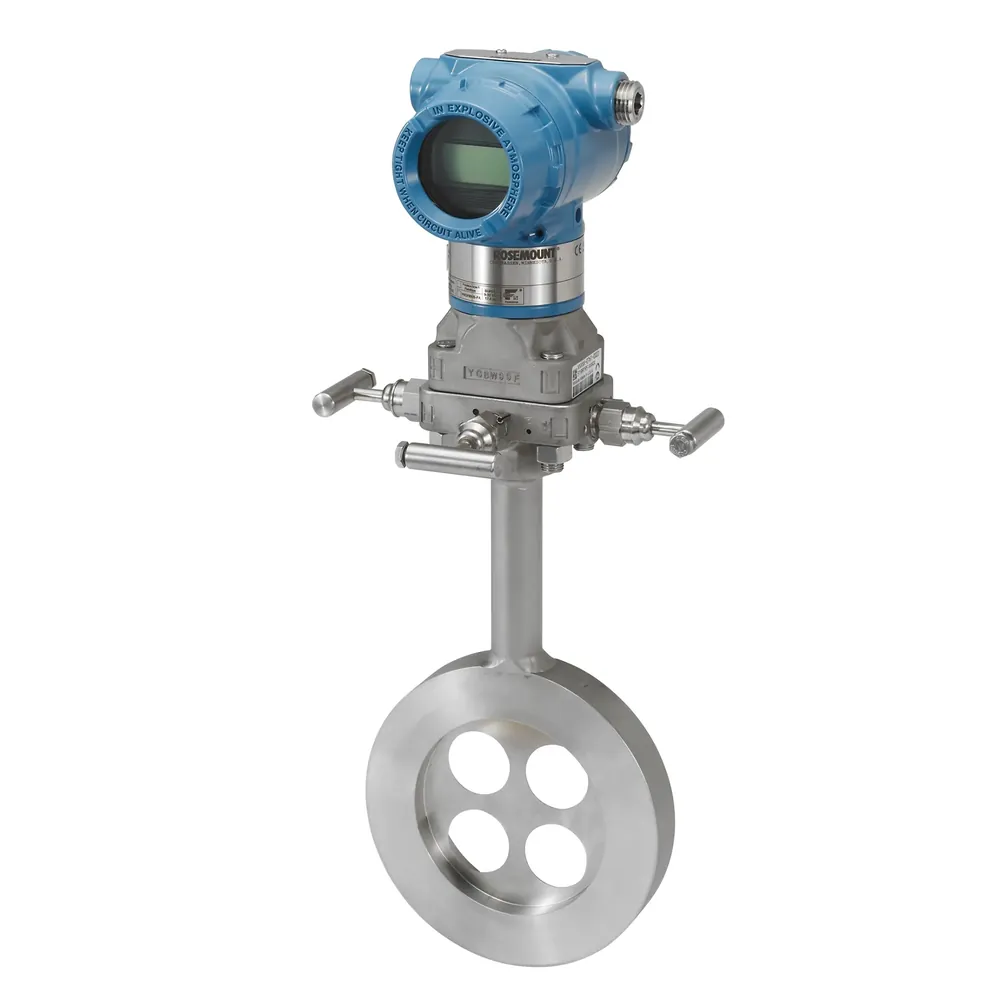

Rosemount 3051CFC Compact Orifice Flow Meter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Line sizes up to 12 in. (300 mm); compact orifice or 4-hole conditioning plate; DP ranges per 3051C platform; 150:1 rangedown
Accuracy
3051CFC_C conditioning: β=0.4 ±1.75% of flow (8:1); β=0.50/0.65 ±1.95%; 3051CFC_P orifice ±2.00% of flow (8:1); +0.5% for <2 in. or >8 in. on P option
Accuracy % FS
1.75
Output
4–20 mA HART; WirelessHART; FOUNDATION Fieldbus; flow totalizer / flow-specific configuration
Supply
Per 3051C transmitter selection (wired / WirelessHART SmartPower)
Process connection
Compact wafer between flanges; assembled leak-tested flow meter
| المعامل | القيمة |
|---|---|
| Measuring range | Line sizes up to 12 in. (300 mm); compact orifice or 4-hole conditioning plate; DP ranges per 3051C platform; 150:1 rangedown |
| Accuracy | 3051CFC_C conditioning: β=0.4 ±1.75% of flow (8:1); β=0.50/0.65 ±1.95%; 3051CFC_P orifice ±2.00% of flow (8:1); +0.5% for <2 in. or >8 in. on P option |
| Accuracy % FS | 1.75 |
| Output | 4–20 mA HART; WirelessHART; FOUNDATION Fieldbus; flow totalizer / flow-specific configuration |
| Supply | Per 3051C transmitter selection (wired / WirelessHART SmartPower) |
| Process connection | Compact wafer between flanges; assembled leak-tested flow meter |
| Wetted parts | 316 SST primary element typical; coplanar sensor module materials per 3051C codes |
| Housing | Low-copper aluminum or SST; optional polymer (PBT/PC) wireless housing |
| Protection | NEMA 4X / IP66 / IP68 when properly installed (transmitter housing) |
| Media temperature | Per 405/3051CF assembly limits in DP Flow PDS |
| Ambient temperature | Per 3051C ambient limits |
| Display | Optional graphical back-lit LOI; 8 languages |
| Communication | HART; WirelessHART; FOUNDATION Fieldbus; Bluetooth configuration options |
| Approvals | SIL options per PDS; hazardous location (see Emerson PDS) |
| Notes | Specs from Emerson Rosemount DP Flow Meters PDS 00813-0100-4485, 3051CFC Compact Orifice section + product page. |
