AquaMetrix

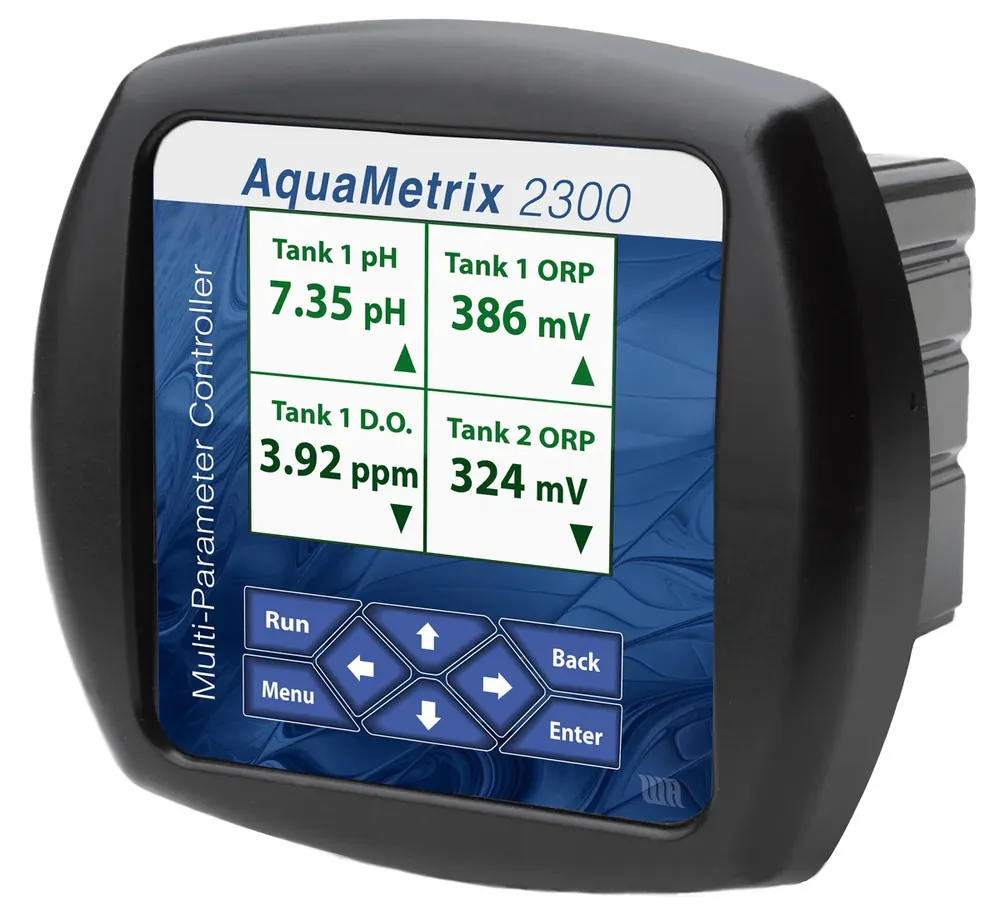

AquaMetrix AM-2300 Multi-Input Controller
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Mounting
1/4 DIN panel mount or wall mount (optional NEMA 4X)
Type
Web-enabled multi-input process controller (AquaMetrix AM-2300)
Analog Inputs
Four 4-20 mA loops (expandable to 8 with card)
Pulse Inputs
Three isolated pulse/frequency inputs (flow sensors)
Relays
Four relays (expandable); email/text alerts
Comms
Modbus TCP; optional Modbus RTU / analog output cards
| المعامل | القيمة |
|---|---|
| Mounting | 1/4 DIN panel mount or wall mount (optional NEMA 4X) |
| Type | Web-enabled multi-input process controller (AquaMetrix AM-2300) |
| Analog Inputs | Four 4-20 mA loops (expandable to 8 with card) |
| Pulse Inputs | Three isolated pulse/frequency inputs (flow sensors) |
| Relays | Four relays (expandable); email/text alerts |
| Comms | Modbus TCP; optional Modbus RTU / analog output cards |
| Logging | CSV data logging to internal microSD |
| Power | 0.2 A @ 115 VAC / ~15 W class |
| Protection | NEMA 4X class enclosure options; 0–70°C operating |
| Feature | Browser setup wizards; remote view/configure with password |
