KEP

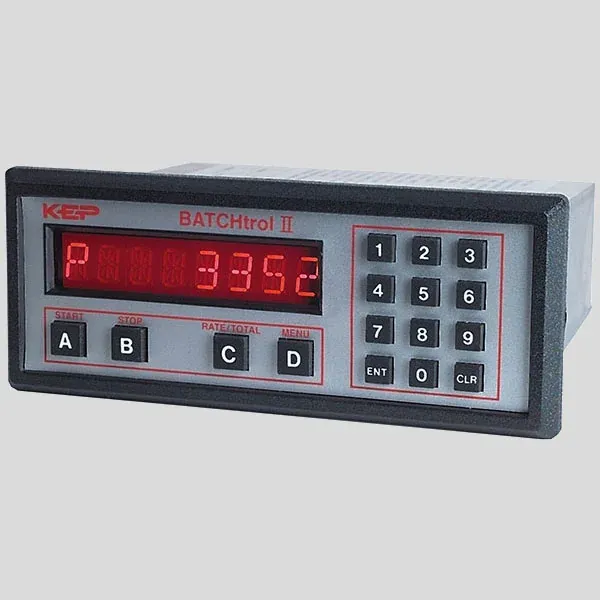

KEP BATCHtrol-II Batch Controller
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Display
8-digit bright 0.55 in alphanumeric LED; rate, total, grand total
Type
Flow batch controller with two-stage valve control (BATCHtrol II / BT2)
Inputs
Pulse up to 20 kHz; analog options 4-20 mA or 1-5 V
K Factors
Separate 8-digit floating-decimal K-factors for rate and total; optional 16-point K-factor
Control
Start/Stop buttons and remote inputs; two setpoints for two-stage valve control
Outputs
Scaled pulse output; optional two-way RS232/422
| المعامل | القيمة |
|---|---|
| Display | 8-digit bright 0.55 in alphanumeric LED; rate, total, grand total |
| Type | Flow batch controller with two-stage valve control (BATCHtrol II / BT2) |
| Inputs | Pulse up to 20 kHz; analog options 4-20 mA or 1-5 V |
| K Factors | Separate 8-digit floating-decimal K-factors for rate and total; optional 16-point K-factor |
| Control | Start/Stop buttons and remote inputs; two setpoints for two-stage valve control |
| Outputs | Scaled pulse output; optional two-way RS232/422 |
| Front Protection | NEMA 4X (IP65) front panel |
| Operating Temperature | +32 to +130 F (0 to +54 C); ET option -40 to 158 F (-40 to 70 C) |
| Power | 110/220 VAC or 12-27 VDC class; dual regulated 12 VDC @ 100 mA supplies when AC powered |
| Memory | EEPROM retains program/total data minimum 10 years without power |
| Document | KEP BATCHtrol II batch controller datasheet (OEM content) |
