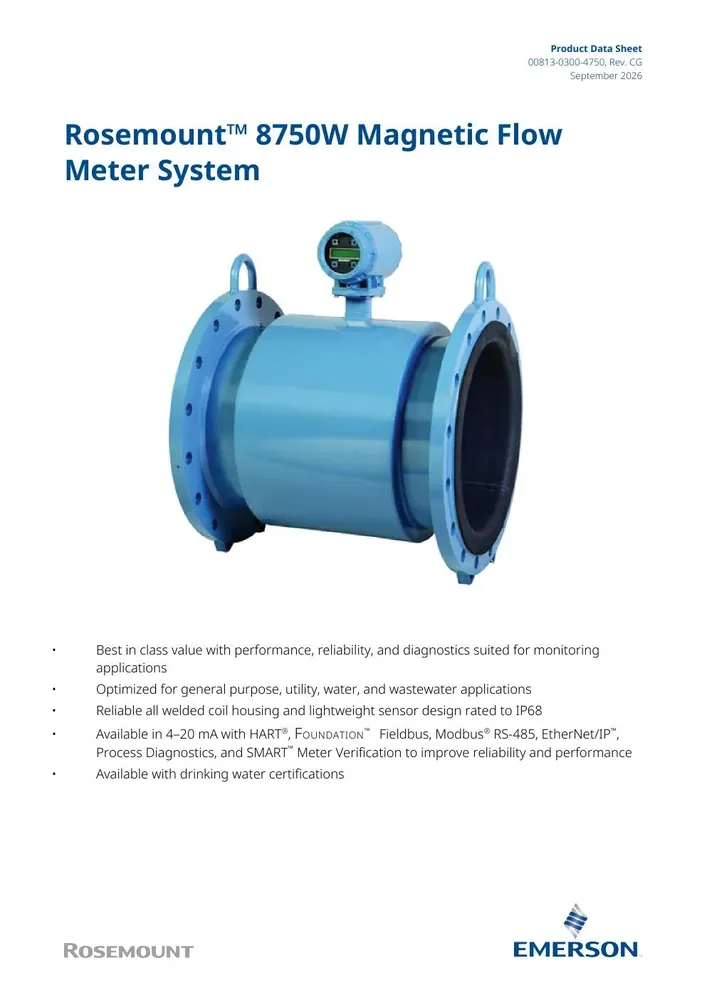

Rosemount 8750W Magnetic Flow Meter System

SKU · 40544 · 8750W Magnetic Flow Meter · العلامة: Rosemount

متوفر

السعر عند الطلب

بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض

الكمية

طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.

المعاملات الرئيسية

Accuracy

Base accuracy 0.5% of rate standard; optional high accuracy 0.2% of rate (PDS)

Approvals

Drinking water certifications available; agency approvals per PDS ordering table

Product Family

Rosemount 8750W magnetic flow meter system for utility water/wastewater (flanged sensor + field/wall-mount transmitter)

Line Sizes

½ in. to 48 in. (15 mm to 1,200 mm) flanged

Outputs

4–20 mA HART; FOUNDATION Fieldbus; Modbus RS-485; EtherNet/IP; pulse; optional discrete channels

Liner Materials

PTFE, PEX, Neoprene, Polyurethane (process temperature per liner table)

المعامل	القيمة
Accuracy	Base accuracy 0.5% of rate standard; optional high accuracy 0.2% of rate (PDS)
Approvals	Drinking water certifications available; agency approvals per PDS ordering table
Product Family	Rosemount 8750W magnetic flow meter system for utility water/wastewater (flanged sensor + field/wall-mount transmitter)
Line Sizes	½ in. to 48 in. (15 mm to 1,200 mm) flanged
Outputs	4–20 mA HART; FOUNDATION Fieldbus; Modbus RS-485; EtherNet/IP; pulse; optional discrete channels
Liner Materials	PTFE, PEX, Neoprene, Polyurethane (process temperature per liner table)
Electrode Materials	Stainless steel and nickel alloy options; standard/reference/bullet-nose electrodes
Protection	All-welded coil housing; sensor design rated IP68; dual-compartment transmitter housing
Diagnostics	Empty pipe, grounding/wiring, high process noise, coated electrode, SMART Meter Verification, coil/electronics faults
Power	AC 90–250 Vac or DC supply options per transmitter selection (see PDS power tables)
Configurations	Integral or remote transmitter; field-mount and wall-mount styles
Applications	General purpose, utility, water and wastewater monitoring
