Flo-tech

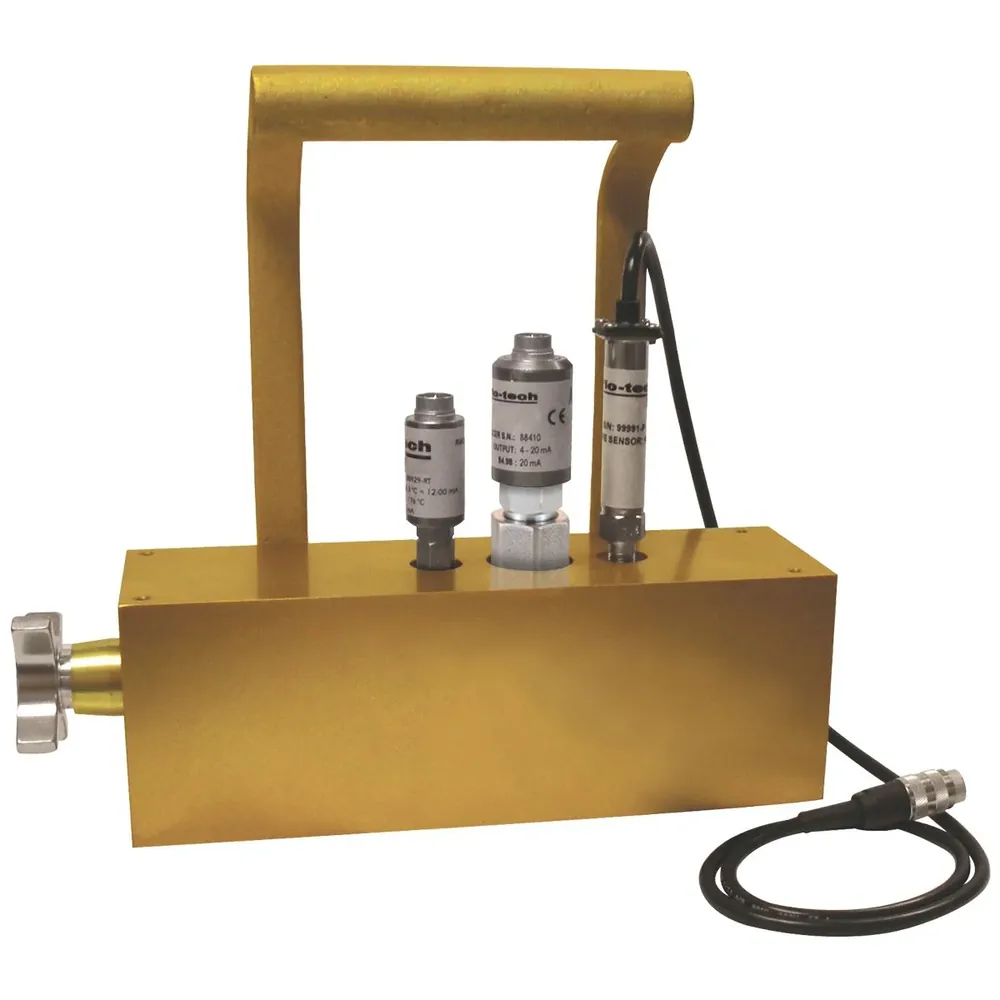

Flo-tech Activa Sensor Arrays
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Type
Hydraulic turbine sensor array measuring flow with optional pressure and temperature (Activa)
Flow Accuracy
+/-1% of reading @ 32 cSt
Repeatability
+/-0.2%
Operating Pressure
Up to 400 bar (5800 psi) maximum
Fluid Temp
-4 to +300 F (-20 to +150 C)
Flow Outputs
IFC converter 4-20 mA or 0-5 VDC for flow; magnetic pick-up 0-3500 Hz
| المعامل | القيمة |
|---|---|
| Type | Hydraulic turbine sensor array measuring flow with optional pressure and temperature (Activa) |
| Flow Accuracy | +/-1% of reading @ 32 cSt |
| Repeatability | +/-0.2% |
| Operating Pressure | Up to 400 bar (5800 psi) maximum |
| Fluid Temp | -4 to +300 F (-20 to +150 C) |
| Flow Outputs | IFC converter 4-20 mA or 0-5 VDC for flow; magnetic pick-up 0-3500 Hz |
| Aux Outputs | 4-20 mA for optional temperature and pressure sensors |
| Ports | SAE J1926/1 or ISO1179 (BSPP); four nominal flow ranges (e.g. 1-40 gal/min SAE 12) |
| Power | Loop-powered / 10-30 VDC class (IFC) |
| Document | Flo-tech / Badger Meter Europa Hydraulic Diagnostic Products catalog — Activa sensor array section |
