Extech

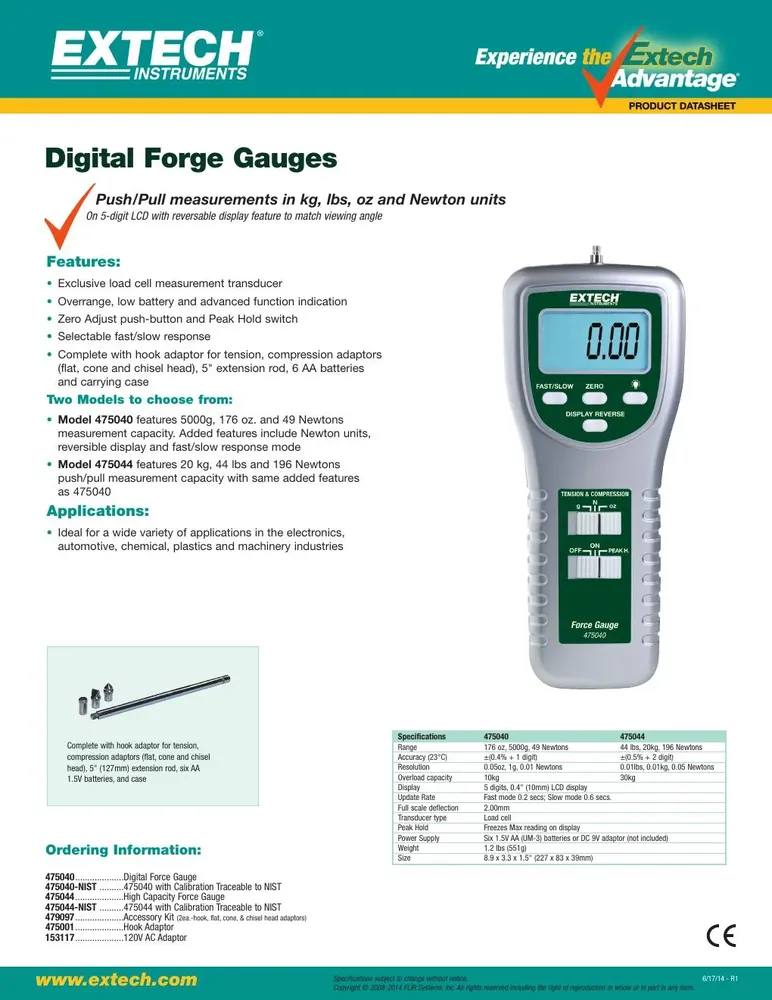

Extech 475040 and 475044 Digital Force Gauges
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
475040: 176 oz / 5000 g / 49 N; 475044: 44 lb / 20 kg / 196 N
Accuracy
475040 ±(0.4% + 1 digit) @ 23 °C; 475044 ±(0.5% + 2 digit) @ 23 °C
Display
5-digit 0.4 in (10 mm) LCD; reversible for viewing angle
Mounting
Rear M5 × 0.8 mounting screws, 60 mm spacing
Resolution
475040: 0.05 oz / 1 g / 0.01 N; 475044: 0.01 lb / 0.01 kg / 0.05 N
Overload Capacity
475040: 10 kg; 475044: 30 kg
| المعامل | القيمة |
|---|---|
| Measuring range | 475040: 176 oz / 5000 g / 49 N; 475044: 44 lb / 20 kg / 196 N |
| Accuracy | 475040 ±(0.4% + 1 digit) @ 23 °C; 475044 ±(0.5% + 2 digit) @ 23 °C |
| Display | 5-digit 0.4 in (10 mm) LCD; reversible for viewing angle |
| Mounting | Rear M5 × 0.8 mounting screws, 60 mm spacing |
| Resolution | 475040: 0.05 oz / 1 g / 0.01 N; 475044: 0.01 lb / 0.01 kg / 0.05 N |
| Overload Capacity | 475040: 10 kg; 475044: 30 kg |
| Transducer | Load cell |
| Update Rate | Fast mode 0.2 s; Slow mode 0.6 s |
| Functions | Tension/compression auto-detect; peak hold; zero adjust; units select (g/kg, oz/lb, N) |
| Full Scale Deflection | 2.00 mm |
| Power | Six 1.5 V AA batteries or optional 9 V DC adaptor |
| Dimensions Weight | Approx. 8.9 × 3.3 × 1.5 in (227 × 83 × 39 mm); ~1.2 lb (551 g) datasheet / ~650 g product page |
