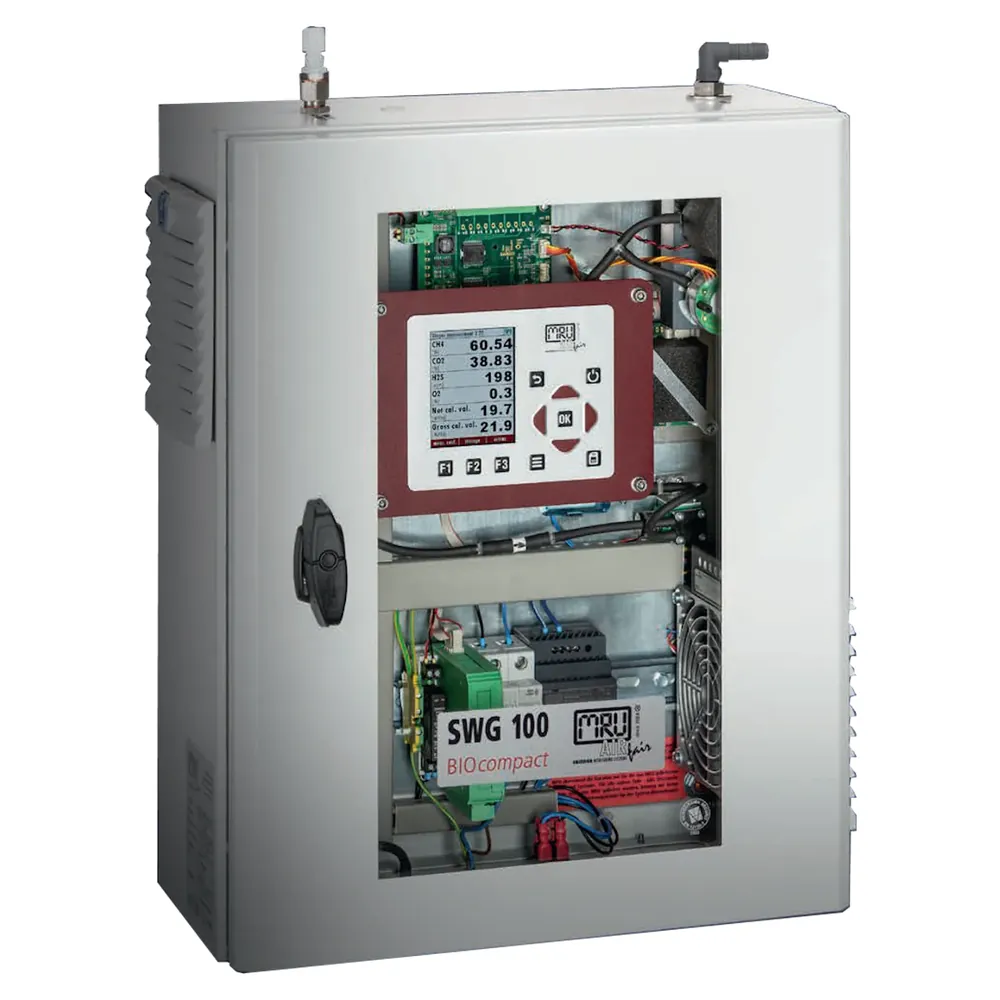

MRU SWG 100 Compact BioGas Analyzer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Application
Discontinuous biogas / landfill gas analysis; indoor or outdoor
Sites
Up to 2 sites time-shared; up to 24 measurements / 24 h user-settable
Measured Gases
O2, CO2, CH4, H2S (low/high), H2 (NDIR / ECS per brochure)
Ch4 Co2 Range
0…100% (NDIR)
O2 Range
0…25%
Hmi
3.5 in TFT color display; password-protected calibration
| المعامل | القيمة |
|---|---|
| Application | Discontinuous biogas / landfill gas analysis; indoor or outdoor |
| Sites | Up to 2 sites time-shared; up to 24 measurements / 24 h user-settable |
| Measured Gases | O2, CO2, CH4, H2S (low/high), H2 (NDIR / ECS per brochure) |
| Ch4 Co2 Range | 0…100% (NDIR) |
| O2 Range | 0…25% |
| Hmi | 3.5 in TFT color display; password-protected calibration |
| Outputs | 4× 4…20 mA isolated; 2 alarm relays; RS485 Modbus RTU |
| Sample Pressure | −100 mbar to +200 mbar inlet |
| Cabinet | 400×500×300 mm; IP54; ~14 kg |
| Power | 90…240 Vac / 47…63 Hz / 60 W (360 W with heater) |
| Ambient | +5…+45 °C or −10…+45 °C with cabinet heater |
