Alpha Omega Instruments (AOI)

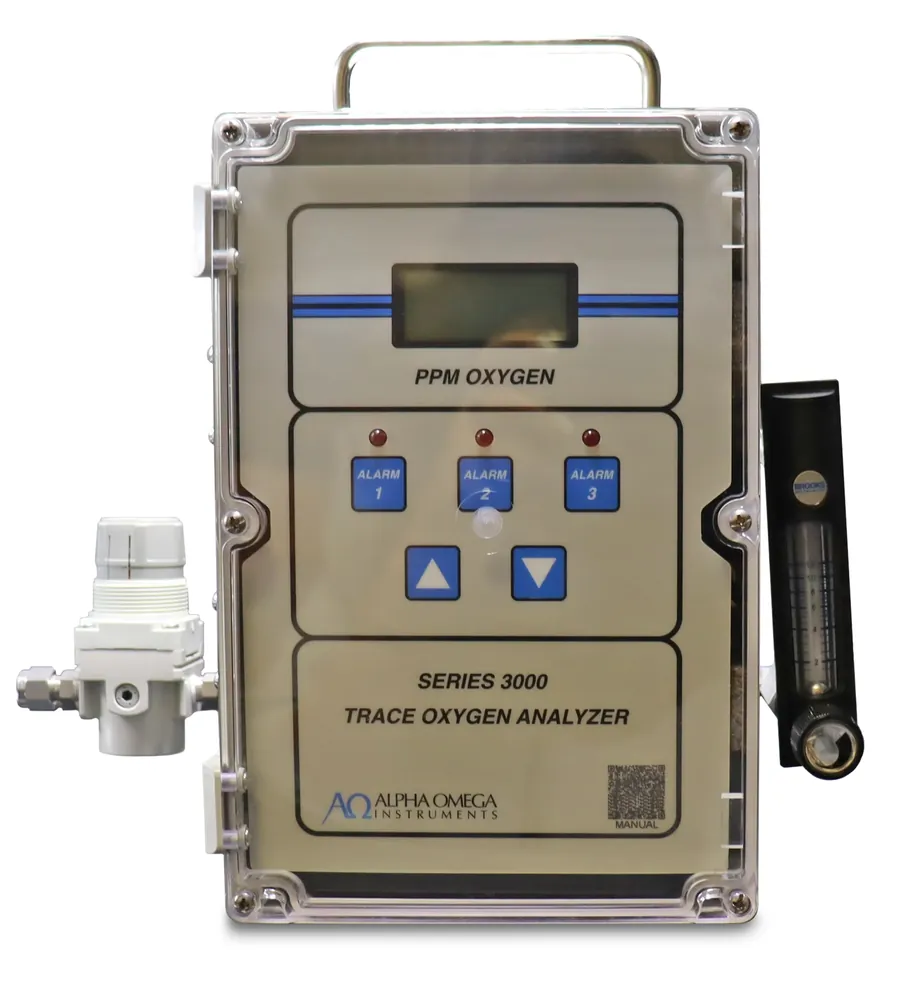

Alpha Omega Instruments (AOI) AOI Series 3000 Oxygen Analyzer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
+/-1% of full scale (+/-5% FS on ranges <=5 ppm) at constant T/P
Type
Alpha Omega Instruments Series 3000 trace oxygen analyzer (Process Insights / AOI)
Measurement Ranges
Under 1 ppm to 10,000 ppm O2; single-range or three-range with auto-ranging
Sensor
Long-life ambient-temperature electrochemical; optional CO2-resistant sensor
Response Time
90% of full scale typically <10 seconds (sample-system dependent on low ranges)
Outputs
4-20 mA and 0-2 VDC standard; optional RS-232 / RS-485
| المعامل | القيمة |
|---|---|
| Accuracy | +/-1% of full scale (+/-5% FS on ranges <=5 ppm) at constant T/P |
| Type | Alpha Omega Instruments Series 3000 trace oxygen analyzer (Process Insights / AOI) |
| Measurement Ranges | Under 1 ppm to 10,000 ppm O2; single-range or three-range with auto-ranging |
| Sensor | Long-life ambient-temperature electrochemical; optional CO2-resistant sensor |
| Response Time | 90% of full scale typically <10 seconds (sample-system dependent on low ranges) |
| Outputs | 4-20 mA and 0-2 VDC standard; optional RS-232 / RS-485 |
| Alarms | Three SPDT Form C O2 relays 10 A; status alarm; internal audible buzzer |
| Power | Universal 115-230 VAC 50-60 Hz or 18-32 VDC |
| Sample | 1.0-2.0 SCFH (0.5-1.0 L/min); 0.1-1.5 psig; 40-104 F |
| Enclosure | Polycarbonate NEMA 1 hinged clear cover; 1/4 in SS compression fittings |
| Weight | About 11 lb (4.98 kg) standard bench-top |
| Document | Process Insights Series 3000 Datasheet EN + Series 3000 Manual (process-insights.com) |
