Manning Systems by Honeywell

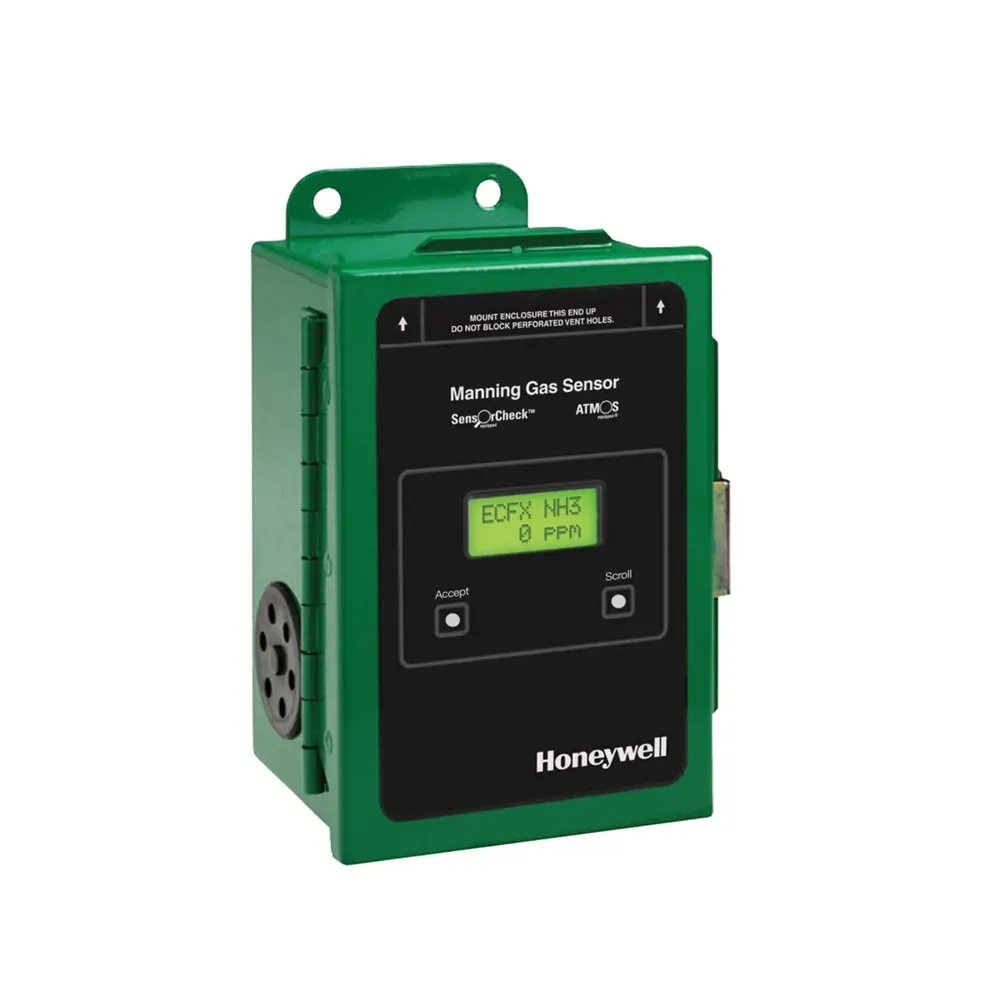

Manning EC-FX-NH3 Ammonia Gas Sensor/Transmitter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Low range 0–100 ppm (std), 0–200, 0–250 ppm; high range 0–500, 0–1000 ppm
Accuracy
±5% full scale
Display
Optional 2×8 alphanumeric LCD with continuous backlight; LED status without LCD
Gas Type
Ammonia (NH3) electrochemical sensor/transmitter for industrial refrigeration
Repeatability
<10% of full scale
Response Time
T90 <30 s low range; <75 s high range
| المعامل | القيمة |
|---|---|
| Measuring range | Low range 0–100 ppm (std), 0–200, 0–250 ppm; high range 0–500, 0–1000 ppm |
| Accuracy | ±5% full scale |
| Display | Optional 2×8 alphanumeric LCD with continuous backlight; LED status without LCD |
| Gas Type | Ammonia (NH3) electrochemical sensor/transmitter for industrial refrigeration |
| Repeatability | <10% of full scale |
| Response Time | T90 <30 s low range; <75 s high range |
| Outputs | 2× isolated 4–20 mA (700 Ω max @ 24 VDC; 0.5 mA fault); RS-485 Modbus RTU |
| Power | 24 VDC, 0.5 A max |
| Operating Temperature | −50 °F to +120 °F (−45 °C to +49 °C); ATMOS enviro-adaptive tech for refrigerated/outdoor |
| Humidity | 5–100% RH (condensing) |
| Enclosure | NEMA 1 gasketed #16 ga steel standard; stainless options; weight ~3 lb; IP44 (EN60529) |
| Sensor Check | SensorCheck viability test every 24 h; 3-year sensor warranty from shipment |
