Fluke

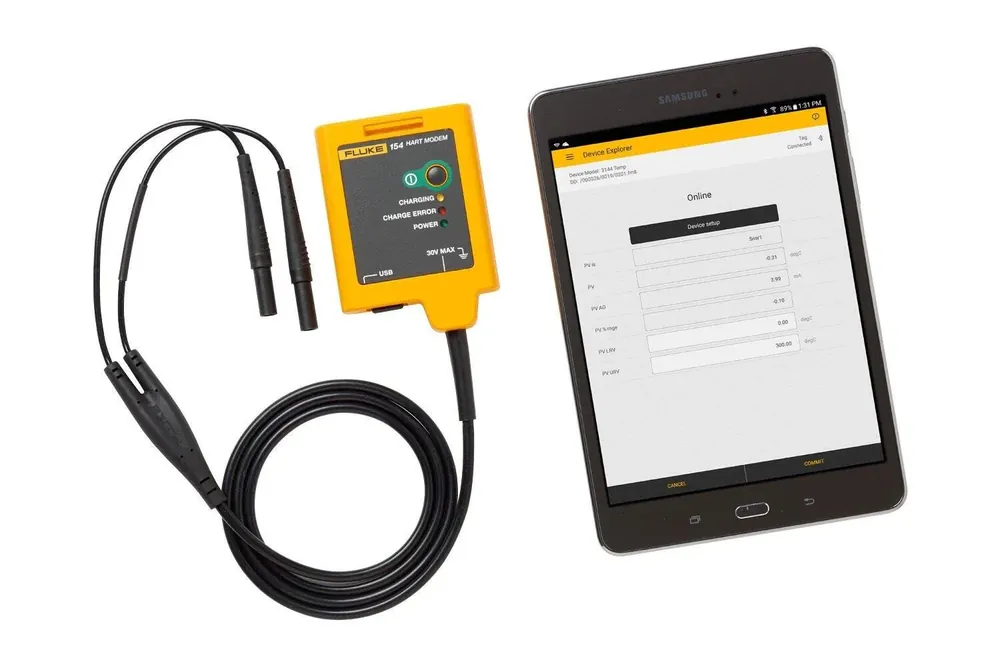

Fluke 154 HART Calibration Assistant
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Hart Support
Full DD support HART 4/5/6/7; HCF_SPEC-54 physical layer
Wireless Range
Bluetooth Class 1 up to ~250–275 ft (modem)
Tablet Os
Android 5.0+; 960×540 qHD; 1 GB RAM / 2 GB ROM class
Modem Output
600 mVpp capacitive coupling; leakage <10 µA
Modem Battery
Rechargeable Li-Ion; ~19 h continuous
Operating Temperature
0 to 50 °C (modem)
| المعامل | القيمة |
|---|---|
| Hart Support | Full DD support HART 4/5/6/7; HCF_SPEC-54 physical layer |
| Wireless Range | Bluetooth Class 1 up to ~250–275 ft (modem) |
| Tablet Os | Android 5.0+; 960×540 qHD; 1 GB RAM / 2 GB ROM class |
| Modem Output | 600 mVpp capacitive coupling; leakage <10 µA |
| Modem Battery | Rechargeable Li-Ion; ~19 h continuous |
| Operating Temperature | 0 to 50 °C (modem) |
| Cable Length | 4 ft (1.2 m) HART cable with Mini-Grabber |
| Functions | Configure devices; HART trim with 750/720 calibrators; monitor PV/SV/TV/QV; store configs |
| Form Factor | Modem 4 × 1 × 2.75 in; 0.36 lb |
| Warranty | 3 years |
| Family | Fluke 154 HART Calibration Assistant |
