E+E Elektronik

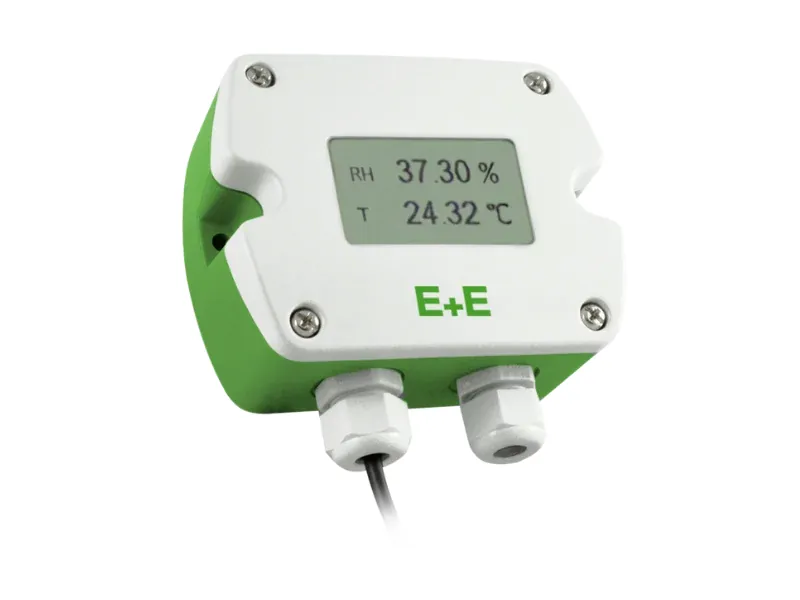

E+E Elektronik EE210 Humidity and Temperature Sensor
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Mounting
Wall (T1), duct (T2), remote probe (T3), outdoor with radiation shield (T13)
Type
Humidity and temperature sensor/transmitter for demanding climate control (EE210)
Humidity Range
0…100 %RH
Humidity Accuracy
Type T1/T2: ±(1.3 + 0.003×mv) %RH (−15…+40 °C, ≤90 %RH)
Temperature Range
−40…+60 °C (−40…+140 °F) typical wall/duct
Outputs
Analogue voltage/current (2 channels) + RS485 Modbus RTU; optional display
| المعامل | القيمة |
|---|---|
| Mounting | Wall (T1), duct (T2), remote probe (T3), outdoor with radiation shield (T13) |
| Type | Humidity and temperature sensor/transmitter for demanding climate control (EE210) |
| Humidity Range | 0…100 %RH |
| Humidity Accuracy | Type T1/T2: ±(1.3 + 0.003×mv) %RH (−15…+40 °C, ≤90 %RH) |
| Temperature Range | −40…+60 °C (−40…+140 °F) typical wall/duct |
| Outputs | Analogue voltage/current (2 channels) + RS485 Modbus RTU; optional display |
| Calculated | Dew point, absolute humidity, mixing ratio and related RH parameters |
| Enclosure | IP65 / NEMA 4X |
| Sensing | Encapsulated electronics + E+E coated sensing element for polluted/corrosive air |
| Configuration | Optional USB-C stick for interface, scaling, RH/T adjustment, display layout |
