E+E Elektronik

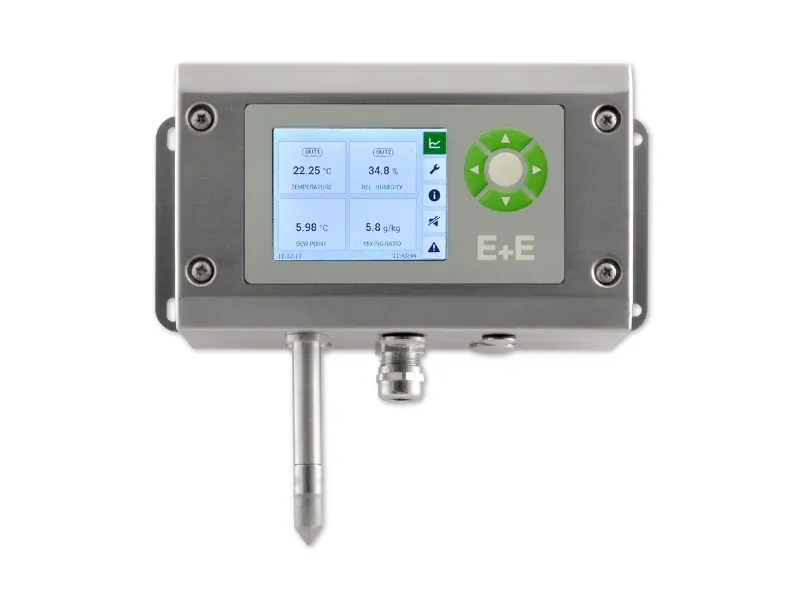

E+E Elektronik EE310 High-End Humidity and Temperature Transmitter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Display
3.5 in TFT colour display; data logger 20 000 values per measurand; USB service
Type
High-end industrial humidity and temperature transmitter (EE310)
Humidity Range
0…100 %RH
Temperature Range
Probe options from −80 °C (−112 °F) up to +200 °C (+392 °F)
Pressure Range
Pressure-tight probe up to 20 bar (300 psi)
Accuracy Rh
Best accuracy class ±0.95 %RH (see datasheet tables by temperature band)
| المعامل | القيمة |
|---|---|
| Display | 3.5 in TFT colour display; data logger 20 000 values per measurand; USB service |
| Type | High-end industrial humidity and temperature transmitter (EE310) |
| Humidity Range | 0…100 %RH |
| Temperature Range | Probe options from −80 °C (−112 °F) up to +200 °C (+392 °F) |
| Pressure Range | Pressure-tight probe up to 20 bar (300 psi) |
| Accuracy Rh | Best accuracy class ±0.95 %RH (see datasheet tables by temperature band) |
| Accuracy T | ±0.1 °C (0.18 °F) typical (conditions per datasheet) |
| Outputs | 2 analogue (0–1/5/10 V or 0/4–20 mA); RS485 Modbus RTU or Ethernet PoE Modbus TCP |
| Enclosure | IP65 / NEMA 4X polycarbonate or stainless steel; wall/duct/remote probe models |
| Document | E+E datasheet_EE310.pdf + BA_EE310_e.pdf |
