Jewell Instruments

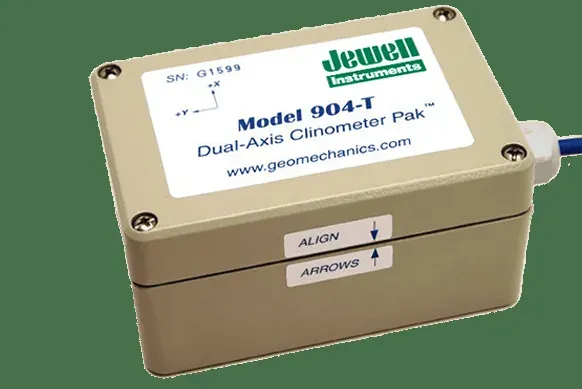

Jewell Instruments A904 Clinometer Pak
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
High-Gain ±10°; Standard ±25°; Wide-Angle ±50°
Accuracy
Nonlinearity max 1% / 2.5% / 7% FRO (HG/Std/WA); nonrepeatability 0.02°
Output
±2.5 VDC or 0–5 VDC; channels X-tilt, Y-tilt, Temperature (0.1 °C/mV)
Supply
+8 to +24 VDC (bipolar); +10.5 to +26.5 VDC (0–5 V); 7 mA typ
Housing
Die-cast aluminum, painted; 120 × 80 × 60 mm
Protection
NEMA 4X / IP65 weatherproof enclosure
| المعامل | القيمة |
|---|---|
| Measuring range | High-Gain ±10°; Standard ±25°; Wide-Angle ±50° |
| Accuracy | Nonlinearity max 1% / 2.5% / 7% FRO (HG/Std/WA); nonrepeatability 0.02° |
| Output | ±2.5 VDC or 0–5 VDC; channels X-tilt, Y-tilt, Temperature (0.1 °C/mV) |
| Supply | +8 to +24 VDC (bipolar); +10.5 to +26.5 VDC (0–5 V); 7 mA typ |
| Housing | Die-cast aluminum, painted; 120 × 80 × 60 mm |
| Protection | NEMA 4X / IP65 weatherproof enclosure |
| Ambient temperature | Operating −40 to +80 °C; storage −40 to +85 °C; humidity 0–90% |
| Mounting | Horizontal or vertical mounting plates (optional) |
| Sensor type | Biaxial clinometer in weatherproof Clinometer Pak enclosure (Model A904 / 904-T) |
| Resolution | 0.005° / 0.01° / 0.02° (HG/Std/WA at 1 mV) |
| Time Constant | 0.15 s; natural frequency 10 Hz |
| Weight | 0.4 kg (1 lb) |
| Cable | 10 ft (3 m) multiconductor cable standard; longer on request |
