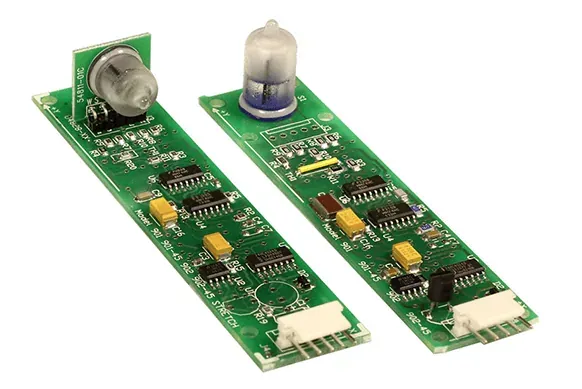

Jewell Instruments A901/A902 Slimline Inclinometers

SKU · 39640 · A901/A902 Slimline · العلامة: Jewell Instruments

متوفر

السعر عند الطلب

بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض

الكمية

طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.

المعاملات الرئيسية

Measuring range

High-Gain ±10°; Standard ±25°; Wide-Angle ±50° (biaxial Slimline clinometer)

Accuracy

Nonlinearity max 1% / 2.5% / 7% FRO (HG/Std/WA); nonrepeatability 0.02°

Output

±2.5 VDC bipolar or 0–5 VDC unipolar; channels X-tilt, Y-tilt, Temperature

Supply

+8 to +24 VDC (bipolar); +10.5 to +26.5 VDC (0–5 V); 7 mA typ, reverse-polarity protected

Housing

Glass electrolytic sensor on fiberglass PCB; slim compact package

Protection

0–90% RH non-condensing (PCB Slimline package; not IP-rated enclosure)

المعامل	القيمة
Measuring range	High-Gain ±10°; Standard ±25°; Wide-Angle ±50° (biaxial Slimline clinometer)
Accuracy	Nonlinearity max 1% / 2.5% / 7% FRO (HG/Std/WA); nonrepeatability 0.02°
Output	±2.5 VDC bipolar or 0–5 VDC unipolar; channels X-tilt, Y-tilt, Temperature
Supply	+8 to +24 VDC (bipolar); +10.5 to +26.5 VDC (0–5 V); 7 mA typ, reverse-polarity protected
Housing	Glass electrolytic sensor on fiberglass PCB; slim compact package
Protection	0–90% RH non-condensing (PCB Slimline package; not IP-rated enclosure)
Ambient temperature	Operating/storage −40 to +85 °C
Approvals	RoHS options per ordering codes
Mounting	Horizontal (A901) or vertical (A902) mounting packages for space-limited OEM/assemblies
Sensor type	Biaxial glass electrolytic Slimline clinometer (A901 horizontal / A902 vertical)
Resolution	0.005° / 0.01° / 0.02° (HG/Std/WA at 1 mV)
Time Constant	0.15 s; natural frequency 10 Hz
Cable	18-inch hook-up pigtail standard
Weight	0.5 oz (15 g)
