Jewell Instruments

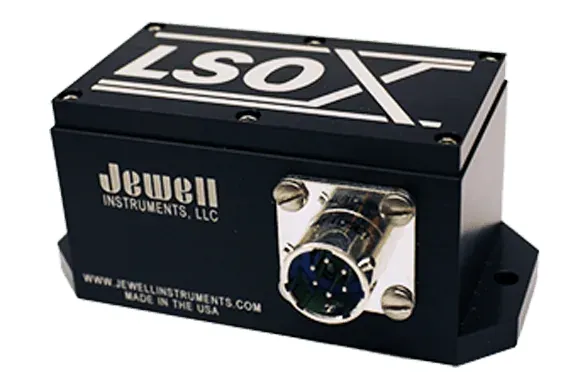

Jewell Instruments LSOX Single-Axis Analog Inclinometer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Input ranges ±1.0°, ±3.0°, ±14.5°, ±30°, ±60°, ±90°
Accuracy
Non-linearity 0.02–0.05% FRO depending on range (sine-referenced)
Output
LSOX-D ±5 VDC; LSOX-S 0–5 VDC; LSOX-L 4–20 mA
Supply
D: ±12 to ±18 VDC; S: +9 to +18 VDC; L: +20 to +30 VDC
Approvals
RoHS compliant; LSOX-S CE available
Notes
Specs from Jewell LSOX Series datasheet. No Instrumart.
| المعامل | القيمة |
|---|---|
| Measuring range | Input ranges ±1.0°, ±3.0°, ±14.5°, ±30°, ±60°, ±90° |
| Accuracy | Non-linearity 0.02–0.05% FRO depending on range (sine-referenced) |
| Output | LSOX-D ±5 VDC; LSOX-S 0–5 VDC; LSOX-L 4–20 mA |
| Supply | D: ±12 to ±18 VDC; S: +9 to +18 VDC; L: +20 to +30 VDC |
| Approvals | RoHS compliant; LSOX-S CE available |
| Notes | Specs from Jewell LSOX Series datasheet. No Instrumart. |
| Resolution | 1 µrad resolution and threshold |
| Bandwidth | 0.5–30 Hz (−3 dB) depending on range |
| Operating Temperature | −40 to +80 °C; storage −60 to +90 °C |
| Shock | 1500 g, 0.5 ms, ½ sine |
| Ingress Protection | IP66 |
| Mass | 370 g |
| Axes | Single-axis |
| Terminations | 6-pin connector, pin terminals, or flying leads |
