Jewell Instruments

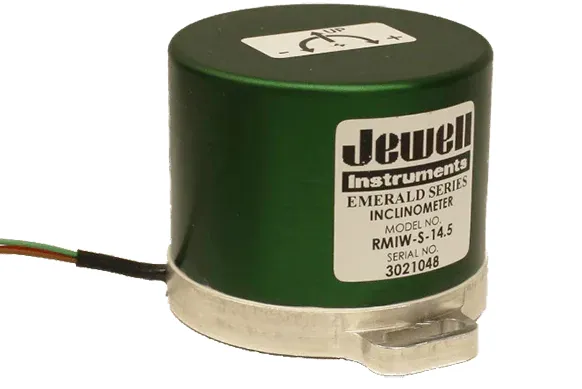

Jewell Instruments RMIW Series Single-Axis Analog Inclinometer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Input ranges ±3.0°, ±14.5°, ±30°, ±45°, ±60°, ±90°
Output
RMIW-D ±5 VDC FRO; RMIW-L 4–20 mA; RMIW-S 0–5 VDC
Nonlinearity
0.02–0.05 %FRO max depending on range (sine-referenced)
Bandwidth
5.0 Hz (−3 dB) nominal
Resolution Threshold
3.5 µrad (with noise reduction)
Input Voltage
D/L: ±12 to ±18 VDC; S: ±15 to ±30 VDC (options for single-ended)
| المعامل | القيمة |
|---|---|
| Measuring range | Input ranges ±3.0°, ±14.5°, ±30°, ±45°, ±60°, ±90° |
| Output | RMIW-D ±5 VDC FRO; RMIW-L 4–20 mA; RMIW-S 0–5 VDC |
| Nonlinearity | 0.02–0.05 %FRO max depending on range (sine-referenced) |
| Bandwidth | 5.0 Hz (−3 dB) nominal |
| Resolution Threshold | 3.5 µrad (with noise reduction) |
| Input Voltage | D/L: ±12 to ±18 VDC; S: ±15 to ±30 VDC (options for single-ended) |
| Input Current | 40 mA max (D/S); 55 mA max (L) |
| Operating Temperature | −55 °C to +85 °C |
| Storage Temperature | −60 °C to +90 °C |
| Shock | 500 g, 1 ms, ½ sine |
| Ingress Protection | IP65 |
| Weight | 4.2 oz |
| Dimensions | 2.27 × 2.60 × 1.72 in |
| Axes | Single-axis analog (flexure suspension servo / force-balance) |
