Honeywell

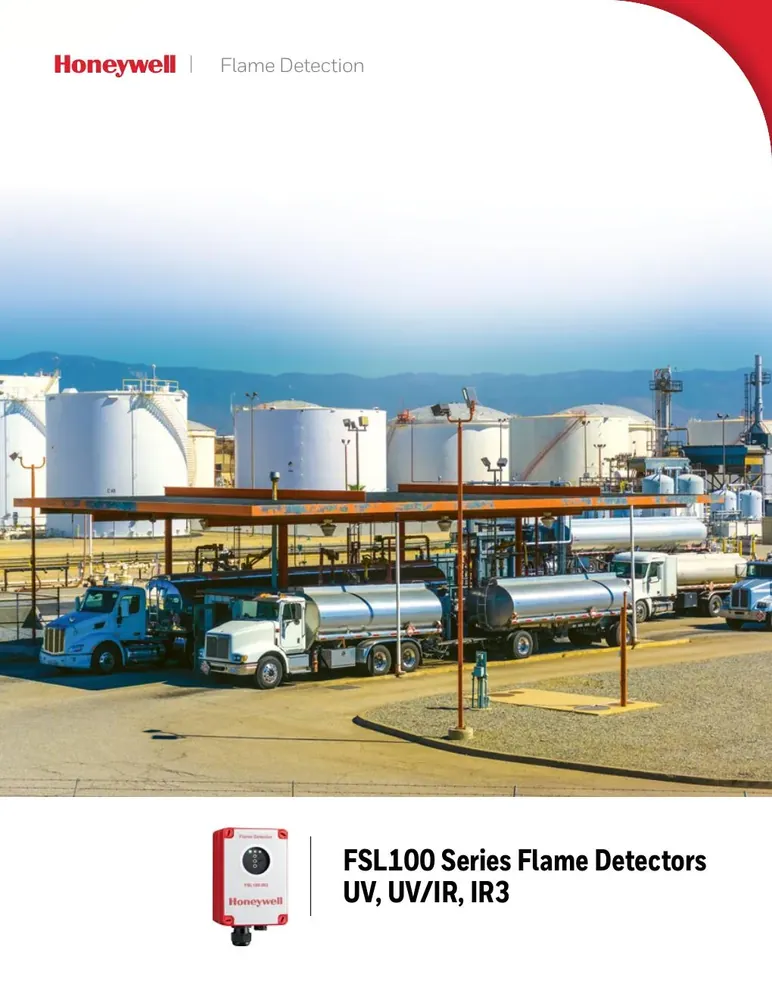

Honeywell FSL100 Series Flame Detectors
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Output
4–20 mA stepped analog plus alarm and fault SPDT relays (30 VDC / 2 A, 60 W max class)
Supply
10–28 VDC (product page 12–14 VDC / ~25 mA nominal class)
Housing
Glass-reinforced polyester (GRP); red or white; UL94 V-0
Ambient temperature
Minimum −40 °C class; see datasheet for model-specific maxima
Approvals
EN54-10; FM 3260; FM Class I/II/III Div 2; ATEX Zone 2/22 class options; CE / EU DoFC
Mounting
Optional swivel bracket assembly
| المعامل | القيمة |
|---|---|
| Output | 4–20 mA stepped analog plus alarm and fault SPDT relays (30 VDC / 2 A, 60 W max class) |
| Supply | 10–28 VDC (product page 12–14 VDC / ~25 mA nominal class) |
| Housing | Glass-reinforced polyester (GRP); red or white; UL94 V-0 |
| Ambient temperature | Minimum −40 °C class; see datasheet for model-specific maxima |
| Approvals | EN54-10; FM 3260; FM Class I/II/III Div 2; ATEX Zone 2/22 class options; CE / EU DoFC |
| Mounting | Optional swivel bracket assembly |
| Sensor type | UV, UV/IR, or triple IR (IR3) optoelectronic flame detection |
| Notes | Specs from Honeywell FSL100 DSO datasheet, product page quick specs, and technical handbook. No Instrumart. |
| Detection Range | UV and UV/IR typically 80 ft; IR3 typically 110 ft (n-heptane class per datasheet) |
| Field Of View | Approximately 90° solid angle coverage |
| Response | Fast flaming-fire response in seconds class; continuous health monitoring / automatic self-test |
| Protection Rating | IP65 |
| Dimensions | Approximately 4.9 × 3.15 × 2.25 in; weight ~465 g |
| Conduit Entries | M20 |
