Endress+Hauser

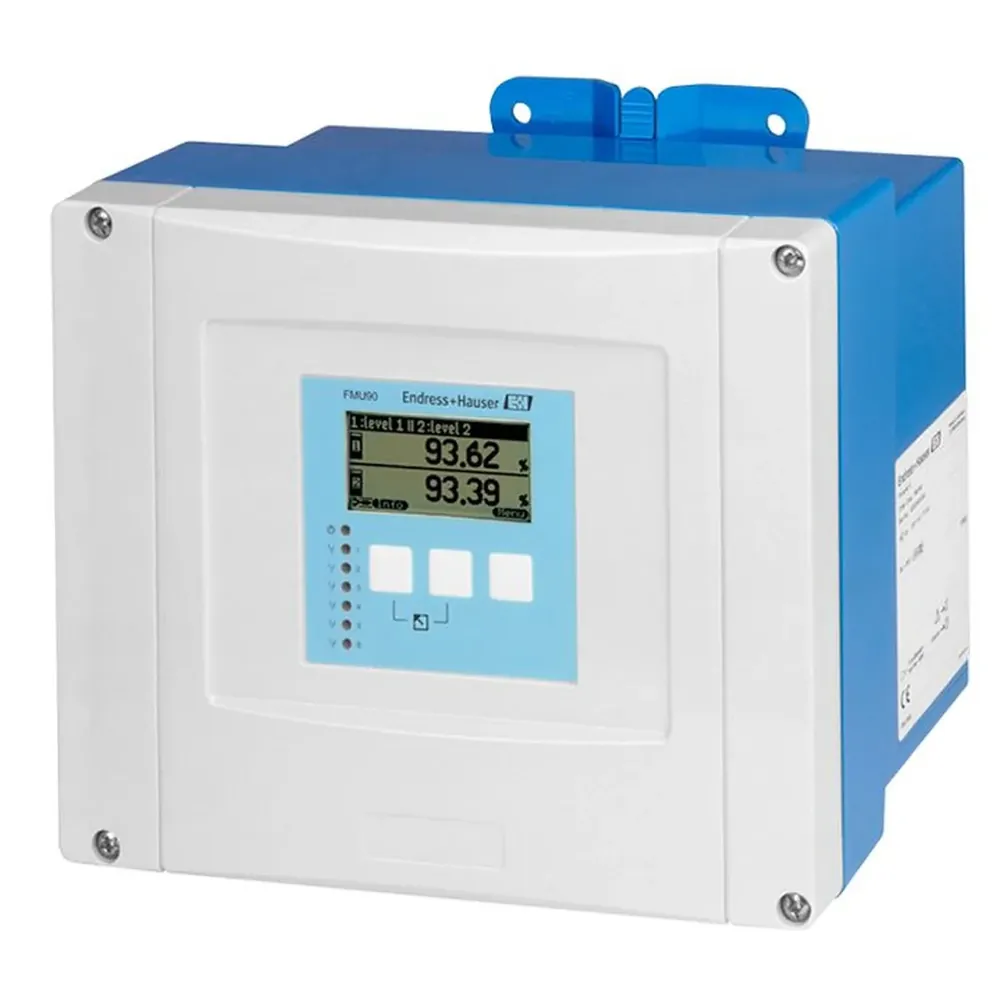

Endress+Hauser Prosonic S FMU90 Ultrasonic Level Transmitter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Transmitter for 1 or 2 ultrasonic sensors FDU90/91/91F/92/93/95; measuring range up to 45 m (148 ft) depending on sensor/medium; also open-channel flow
Accuracy
Per paired FDU sensor TI; transmitter provides linearization (≤32 points) and temperature-corrected time-of-flight
Output
1 or 2 active analog outputs 4–20 mA with HART (or 0–20 mA); 1/3/6 relays SPDT; PROFIBUS DP option
Supply
AC: 90–253 VAC 50/60 Hz ≤23 VA; DC option: 10.5–32 VDC ≤14 W (typ. 8 W)
Process connection
Transmitter only — sensors FDU* have process mounts; field housing or DIN-rail housing
Housing
Polycarbonate or aluminum field housing; DIN-rail housing
| المعامل | القيمة |
|---|---|
| Measuring range | Transmitter for 1 or 2 ultrasonic sensors FDU90/91/91F/92/93/95; measuring range up to 45 m (148 ft) depending on sensor/medium; also open-channel flow |
| Accuracy | Per paired FDU sensor TI; transmitter provides linearization (≤32 points) and temperature-corrected time-of-flight |
| Output | 1 or 2 active analog outputs 4–20 mA with HART (or 0–20 mA); 1/3/6 relays SPDT; PROFIBUS DP option |
| Supply | AC: 90–253 VAC 50/60 Hz ≤23 VA; DC option: 10.5–32 VDC ≤14 W (typ. 8 W) |
| Process connection | Transmitter only — sensors FDU* have process mounts; field housing or DIN-rail housing |
| Housing | Polycarbonate or aluminum field housing; DIN-rail housing |
| Protection | Field housing IP66/NEMA 4X; DIN-rail IP20; remote display IP65 front / IP20 rear |
| Media temperature | Per FDU sensor (transmitter is remote electronics) |
| Ambient temperature | −40 to 60 °C (−40 to 140 °F); storage −40 to 60 °C |
| Display | 6-line plain-text display, 15 languages; envelope curves on display |
| Communication | HART; PROFIBUS DP |
| Approvals | ATEX II 3D (optional aluminum field housing); CE |
| Hazardous area | Optional aluminum field housing ATEX II 3D |
| Notes | Transmitter-only SKU — process_connection/wetted blank by design. Specs from TI00397F EN 2025-04-28. |
