Druck

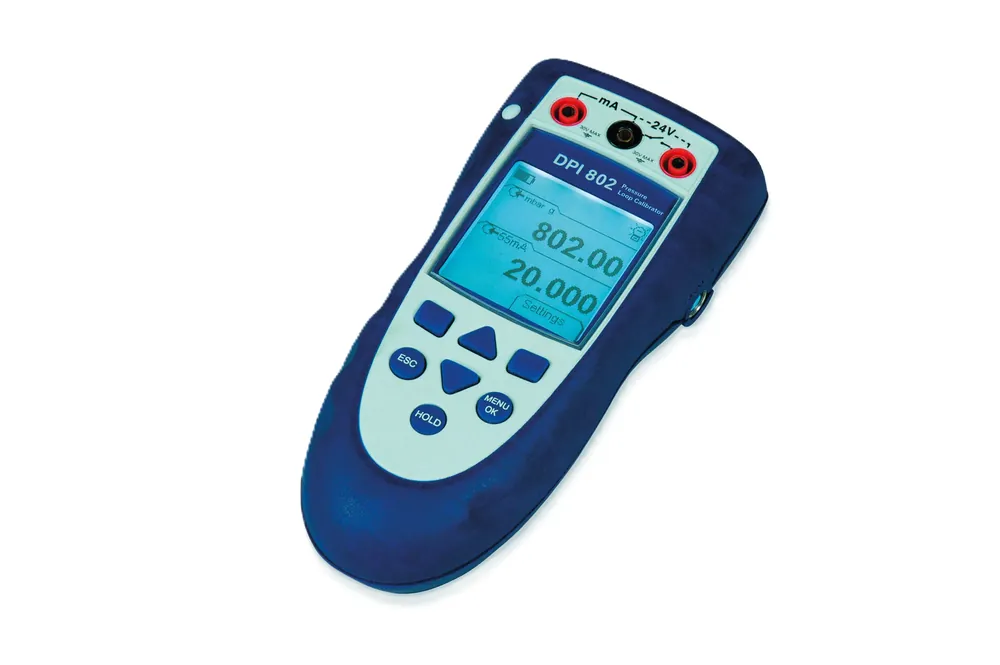

Druck DPI 800 / DPI 802 Pressure Indicator and Loop Calibrator
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Type
Druck DPI 800 pressure indicator / DPI 802 pressure and loop calibrator (handheld)
Pressure Ranges
25 mbar to 700 bar (10 inH2O to 10,000 psi) including vacuum options
Configuration
Single or dual range; optional IUPM/IUPMP (IDOS) plug-and-play modules
Module Accuracy
IDOS modules to 0.05% FS all-inclusive or 0.01% precision class
Dpi802 Ma
mA measure 0 to 55.000 mA; accuracy 0.02% reading + 3 counts; 24 V loop power (35 mA max)
Dpi802 Features
Switch test; selectable 250 ohm HART loop resistor; simultaneous pressure + mA
| المعامل | القيمة |
|---|---|
| Type | Druck DPI 800 pressure indicator / DPI 802 pressure and loop calibrator (handheld) |
| Pressure Ranges | 25 mbar to 700 bar (10 inH2O to 10,000 psi) including vacuum options |
| Configuration | Single or dual range; optional IUPM/IUPMP (IDOS) plug-and-play modules |
| Module Accuracy | IDOS modules to 0.05% FS all-inclusive or 0.01% precision class |
| Dpi802 Ma | mA measure 0 to 55.000 mA; accuracy 0.02% reading + 3 counts; 24 V loop power (35 mA max) |
| Dpi802 Features | Switch test; selectable 250 ohm HART loop resistor; simultaneous pressure + mA |
| Display Ui | Large backlit display; menu-driven; hold, max/min/avg, filter, alarm, tare |
| Pressure Units | 25 pressure units; flow scaling; programmable leak test |
| Construction | Robust weatherproof elastomer-protected handheld for one-handed use |
| Applications | Pressure test/maintenance, transmitter calibration, loop set-up, switch verification |
| Document | Druck DPI 800/802 Datasheet English (druck.com wp-content 2026/05) |
