PIE Practical Instrument Electronics

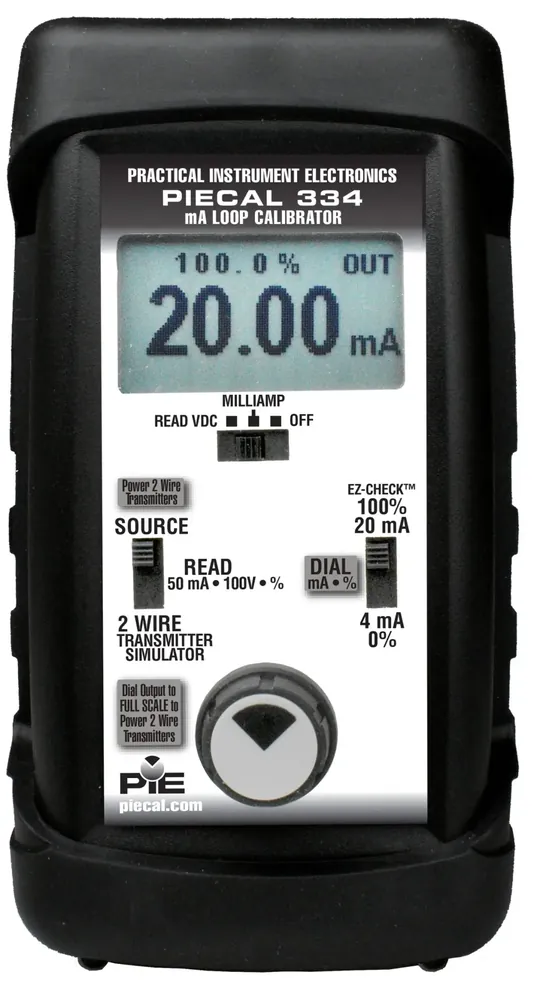

PIE Practical Instrument Electronics PIE 334 and 334Plus Loop Calibrator
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Display
Backlit LCD with simultaneous mA and %
Type
4–20 mA loop calibrator family (PIE 334 and 334Plus)
Source Range
0.00 to 24.00 mA (−25.0 to 125.0% of 4–20 mA)
Read Ma
0.00 to 52.00 mA
Read V
−99.99 to +99.99 VDC
Accuracy 334
±0.025% of span at 4.00 & 20.00 EZ-CHECK outputs
| المعامل | القيمة |
|---|---|
| Display | Backlit LCD with simultaneous mA and % |
| Type | 4–20 mA loop calibrator family (PIE 334 and 334Plus) |
| Source Range | 0.00 to 24.00 mA (−25.0 to 125.0% of 4–20 mA) |
| Read Ma | 0.00 to 52.00 mA |
| Read V | −99.99 to +99.99 VDC |
| Accuracy 334 | ±0.025% of span at 4.00 & 20.00 EZ-CHECK outputs |
| Functions | Source mA; simulate 2-wire TX; power & read 2-wire TX; read loop current/voltage |
| 334plus Extra | Patented loop current / ground leakage detection; menu 250 Ω HART resistor; step/ramp |
| Power | 4× AA; ≥30 hrs typical at 12 mA source |
| Size Weight | 5.63×3.00×1.60 in; ~12.1 oz with boot & batteries |
| Includes | Rubber boot, attached test leads, NIST certificate card |
| Document | 334-9001 Rev I + 334Plus-9001 Rev J + 334-9002 Op Inst |
