Time Electronics

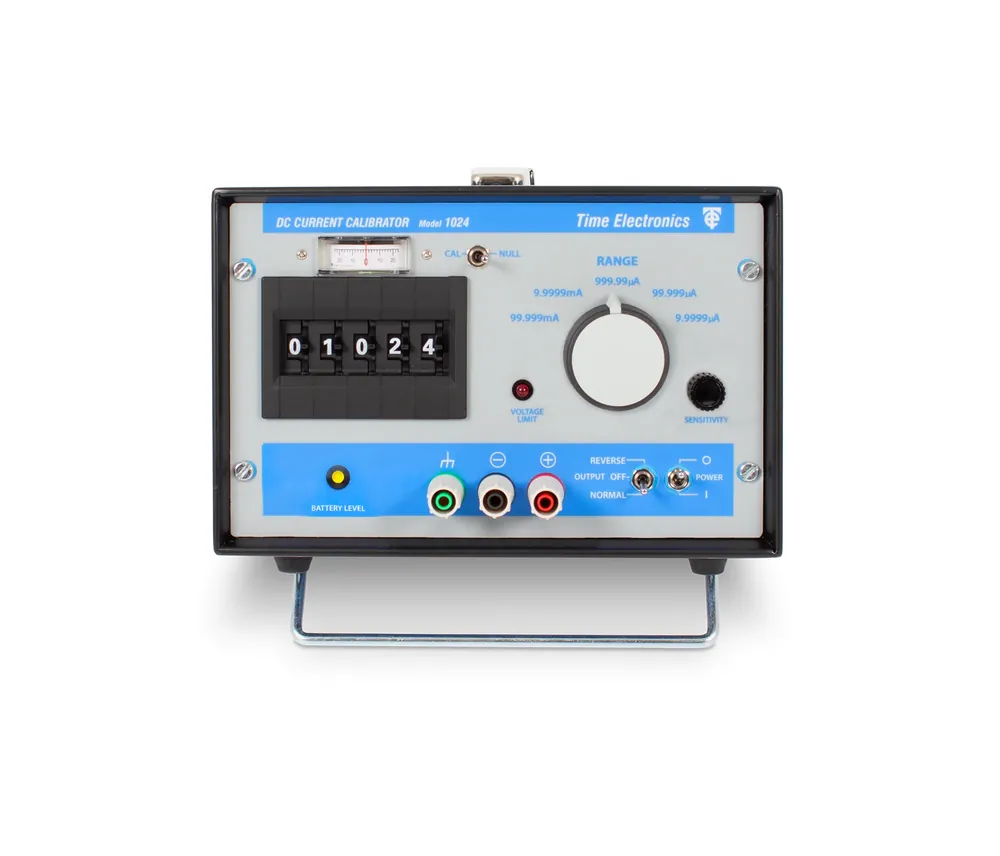

Time Electronics 1024 DC Current Calibrator
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
0.02%
Type
Precision portable DC current calibrator (Time Electronics 1024)
Stability
10 ppm/hr; 30 ppm/°C temperature coefficient
Output Drive
Up to 15 V
Null
Centre-zone null meter for accurate current measurement with no voltage drop at null
Power
Battery or mains; ~12 hours typical use between charges
| المعامل | القيمة |
|---|---|
| Accuracy | 0.02% |
| Type | Precision portable DC current calibrator (Time Electronics 1024) |
| Stability | 10 ppm/hr; 30 ppm/°C temperature coefficient |
| Output Drive | Up to 15 V |
| Null | Centre-zone null meter for accurate current measurement with no voltage drop at null |
| Power | Battery or mains; ~12 hours typical use between charges |
| Terminals | Safety terminals (4 mm shrouded compatible) |
| Applications | Transducer calibration; meter linearity; semiconductor parameter tests |
| Document | 1024 Datasheet + 1024 User Manual |
