Druck

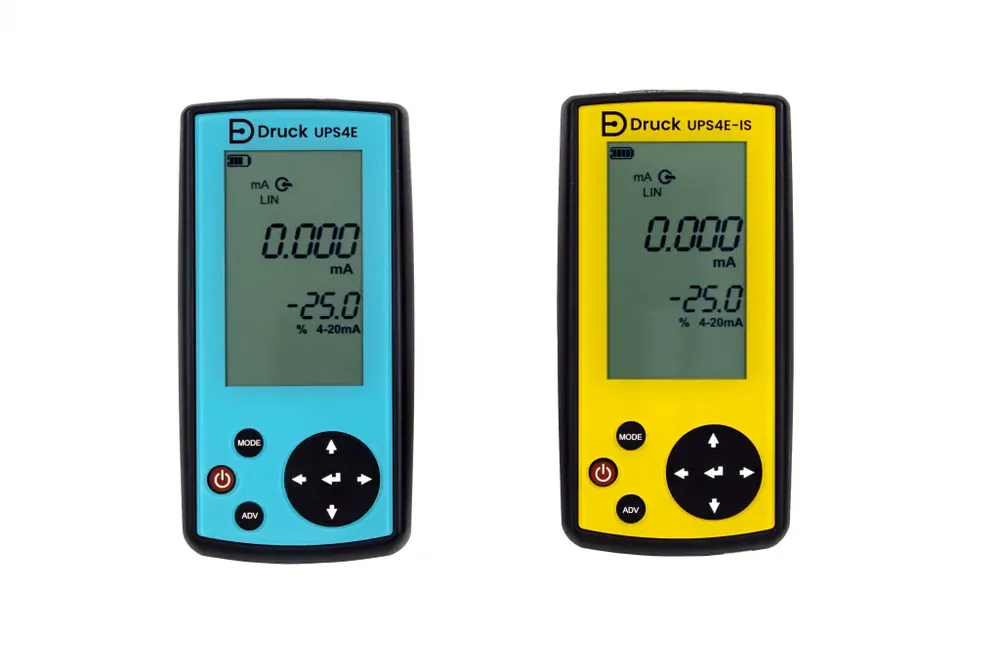

Druck UPS4E Series Loop Calibrator
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Measure/source 0…24 mA; 30 VDC measurement
Accuracy
0.01% of reading + 1 count (mA)
Output
mA source/measure; 24 V DC loop power; step/span/valve check/ramp; dual mA and % readout (linear or flow/square-root)
Supply
Internal battery; 24 V loop power in measure/source modes; auto shutdown
Process connection
N/A (electrical loop calibrator; banana/test leads)
Housing
Compact handheld rugged case (IS yellow scheme on UPS4E-IS)
| المعامل | القيمة |
|---|---|
| Measuring range | Measure/source 0…24 mA; 30 VDC measurement |
| Accuracy | 0.01% of reading + 1 count (mA) |
| Output | mA source/measure; 24 V DC loop power; step/span/valve check/ramp; dual mA and % readout (linear or flow/square-root) |
| Supply | Internal battery; 24 V loop power in measure/source modes; auto shutdown |
| Process connection | N/A (electrical loop calibrator; banana/test leads) |
| Housing | Compact handheld rugged case (IS yellow scheme on UPS4E-IS) |
| Protection | Rugged handheld for field use (see datasheet environmental) |
| Ambient temperature | Per UPS4E datasheet operating table |
| Display | High-resolution backlit display; dual mA/% readout |
| Communication | In-built 250 Ω resistor for HART operation; continuity check |
| Approvals | UPS4E-IS hazardous-area / intrinsically safe model (ATEX/IECEx certificates); CE per datasheet |
| Notes | Specs from Druck UPS4E Datasheet English + 183M0498 user manual. Series includes safe-area UPS4E and UPS4E-IS. |
| Datalogging | 100,000 datalog points |
