KROHNE

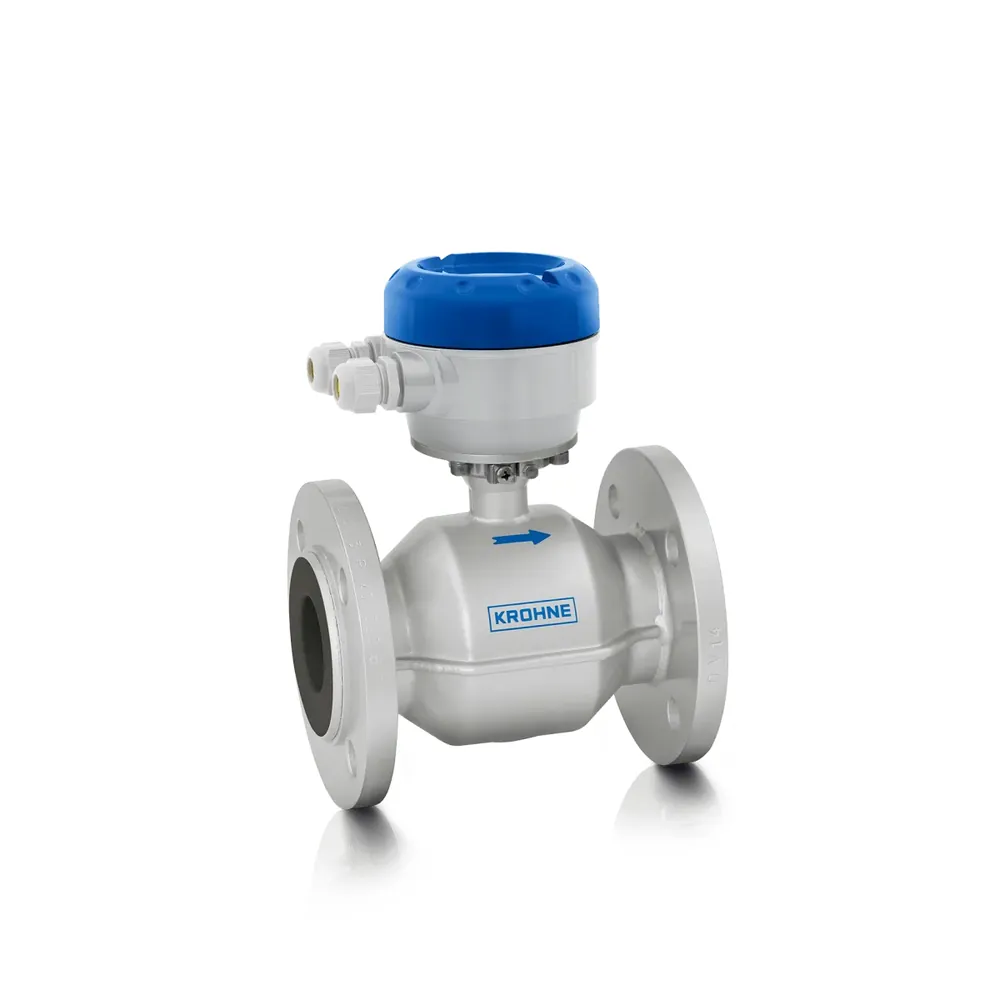

KROHNE OPTIFLUX 2000 Electromagnetic Flow Sensor
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Approvals
Potable water (KTW, ACS, NSF, WRAS, KIWA, DVGW); OIML R49; MID MI-001; NSF/ANSI/CAN 61
Measuring Principle
Faraday's law (electromagnetic flow)
Nominal Diameter
DN25…3000 / 1…120" (IFC 300/400); DN25…1200 with IFC 050/100
Liner Materials
Hard rubber (−5…+80 °C); polypropylene (−5…+90 °C)
Process Temperature
Hard rubber −5…+80 °C; polypropylene −5…+90 °C
Electrode Materials
Standard Hastelloy C; reference electrode Hastelloy C
| المعامل | القيمة |
|---|---|
| Approvals | Potable water (KTW, ACS, NSF, WRAS, KIWA, DVGW); OIML R49; MID MI-001; NSF/ANSI/CAN 61 |
| Measuring Principle | Faraday's law (electromagnetic flow) |
| Nominal Diameter | DN25…3000 / 1…120" (IFC 300/400); DN25…1200 with IFC 050/100 |
| Liner Materials | Hard rubber (−5…+80 °C); polypropylene (−5…+90 °C) |
| Process Temperature | Hard rubber −5…+80 °C; polypropylene −5…+90 °C |
| Electrode Materials | Standard Hastelloy C; reference electrode Hastelloy C |
| Converters | IFC 050 / IFC 100 / IFC 300 / IFC 400 (OPTIFLUX 2050/2100/2300/2400) |
| Construction | Fully welded full-bore flanged flow sensor for water/wastewater |
| Protection | IP68 suitable for subsoil installation and constant flooding |
| Application | Groundwater, potable water, wastewater, sludge, industrial and salt water |
