AEMC

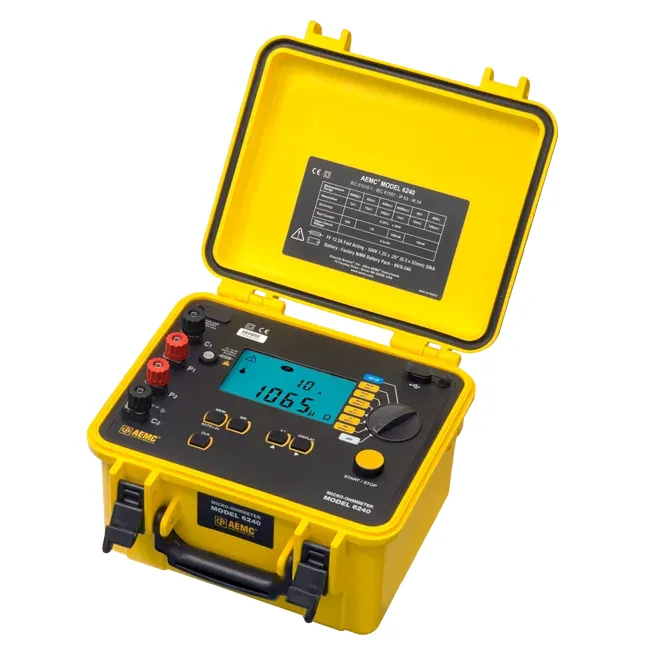

AEMC 6240 10 A Micro-Ohmmeter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
5 µΩ to 400 Ω (six ranges)
Accuracy
±(0.25% of reading + 2 counts) typical
Display
Multi-parameter backlit LCD (resistance, current, polarity, voltage, battery)
Communication
Optical USB
Resolution
1 µΩ to 100 mΩ depending on range
Test Current
Selectable 10 mA, 100 mA, 1 A, 10 A (max 10 A)
| المعامل | القيمة |
|---|---|
| Measuring range | 5 µΩ to 400 Ω (six ranges) |
| Accuracy | ±(0.25% of reading + 2 counts) typical |
| Display | Multi-parameter backlit LCD (resistance, current, polarity, voltage, battery) |
| Communication | Optical USB |
| Resolution | 1 µΩ to 100 mΩ depending on range |
| Test Current | Selectable 10 mA, 100 mA, 1 A, 10 A (max 10 A) |
| Measurement Method | Four-terminal Kelvin; polarity reversal (±I) with averaging |
| Test Modes | Repetitive and Manual |
| Memory | 99 onboard measurements; automatic storage; DataView® reporting |
| Power | NiMH battery pack; integrated 100–240 VAC charger; ≥850 tests @ 10 A (5 s on / 25 s off) |
| Safety | CAT III 50 V; IP64 cover closed / IP53 cover open (catalog) |
| Dimensions Weight | Approx. 10.70 × 9.76 × 7.18 in (272 × 248 × 182 mm); ~10 lb (4.5 kg) |
| Operating Temperature | −10 to +55 °C; 10–85% RH |
