AEMC

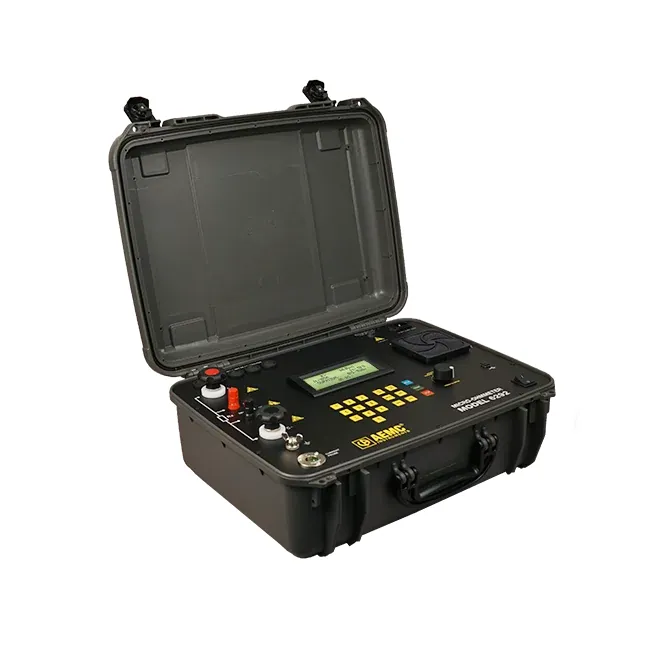

AEMC Model 6292 Micro-ohmmeter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Display
Multi-parameter backlit LCD
Type
AEMC Model 6292 (Cat. 2129.83) high-current four-terminal Kelvin micro-ohmmeter
Max Test Current
200 A True DC selectable (low ripple less than about 2%)
Resistance Range
0.1 micro-ohm to 1 ohm
Minimum Resolution
0.1 micro-ohm
Storage
Up to 8000 onboard measurements
| المعامل | القيمة |
|---|---|
| Display | Multi-parameter backlit LCD |
| Type | AEMC Model 6292 (Cat. 2129.83) high-current four-terminal Kelvin micro-ohmmeter |
| Max Test Current | 200 A True DC selectable (low ripple less than about 2%) |
| Resistance Range | 0.1 micro-ohm to 1 ohm |
| Minimum Resolution | 0.1 micro-ohm |
| Storage | Up to 8000 onboard measurements |
| Data Connection | USB; DataView software |
| Test Modes | Standard Kelvin and Both Sides Grounded (BSG) |
| Power | 100 to 240 VAC |
| Included Highlights | Tool bag, 25 ft 200 A Hippo Kelvin clips, ground lead, USB cable, power cord, DataView on USB drive |
| Document | AEMC Micro-Ohmmeter datasheet 2129-83 |
