AEMC

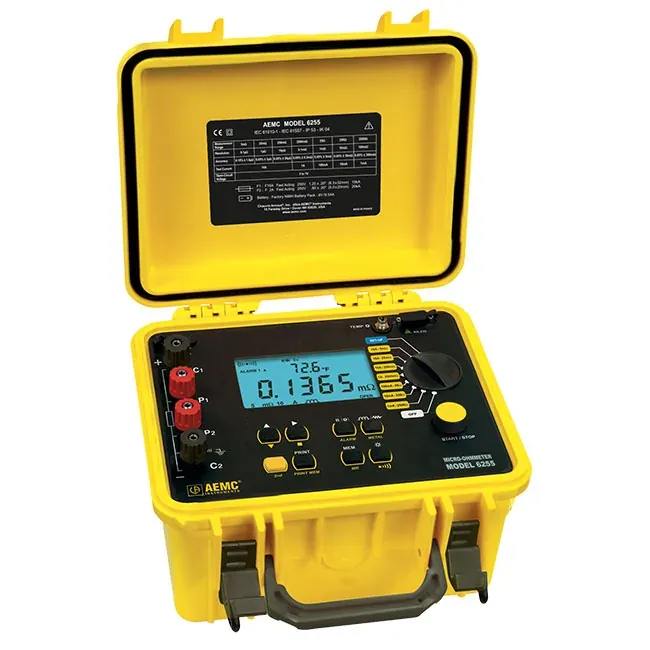

AEMC 6255 Micro-Ohmmeter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
1 µΩ to 2500 Ω across selectable ranges (5 mΩ / 25 mΩ / 250 mΩ / 2500 mΩ / 25 Ω / 250 Ω / 2500 Ω)
Accuracy
Typical ±(0.05% + 0.3 mΩ); 25 mΩ range ±(0.05% + 3 µΩ) at 23 °C ±5 °C
Display
Multi-parameter backlit LCD
Communication
RS-232 with USB adapter
Approvals
CE
Notes
Specs from AEMC 2129-84 datasheet and 6255_EN user manual. No Instrumart.
| المعامل | القيمة |
|---|---|
| Measuring range | 1 µΩ to 2500 Ω across selectable ranges (5 mΩ / 25 mΩ / 250 mΩ / 2500 mΩ / 25 Ω / 250 Ω / 2500 Ω) |
| Accuracy | Typical ±(0.05% + 0.3 mΩ); 25 mΩ range ±(0.05% + 3 µΩ) at 23 °C ±5 °C |
| Display | Multi-parameter backlit LCD |
| Communication | RS-232 with USB adapter |
| Approvals | CE |
| Notes | Specs from AEMC 2129-84 datasheet and 6255_EN user manual. No Instrumart. |
| Resolution | 0.1 µΩ (5 mΩ range) to 100 mΩ (2500 Ω range) |
| Test Current | Selectable 1 mA, 10 mA, 100 mA, 1 A, 10 A (maximum test current 10 A) |
| Test Modes | Auto (repetitive), Inductive (continuous), Resistive (instantaneous) |
| Temperature Compensation | Automatic/manual with selectable metal type (copper, aluminum, or custom) and optional RTD probe |
| Data Storage | 1500 onboard measurements; DataView software for download/reporting |
| Power Source | Rechargeable NiMH 6 V 8.5 Ah pack; ~5000 tests at 10 A; 100–240 Vac charger |
| Protection Rating | IP64 lid closed / IP53 lid open; CAT III 50 V |
| Alarms | Two programmable high/low alarm thresholds |
| Catalog Number | 2129.84 |
