Georg Fischer / GF Signet

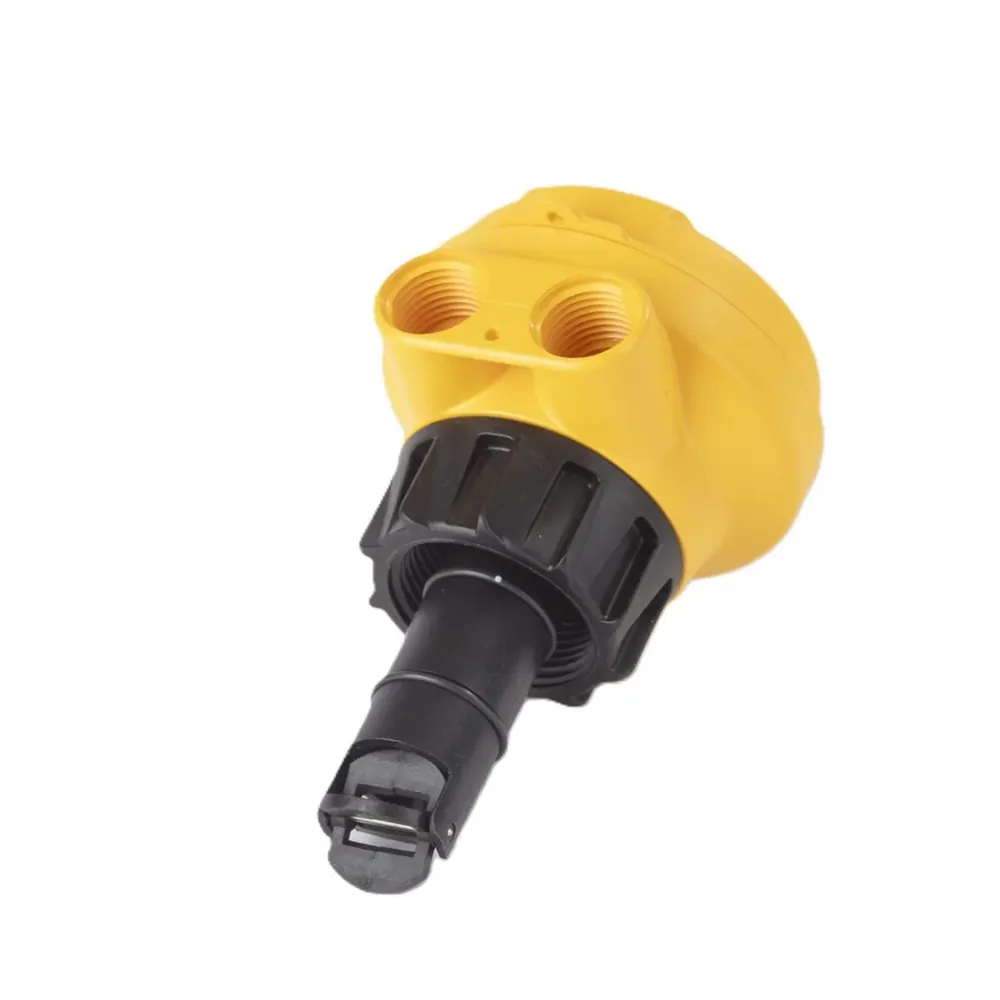

GF Signet 2537 Paddlewheel Flow Meter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
0.1 to 6 m/s (0.3 to 20 ft/s)
Output
Multi-function pulse / flow switch; Digital (S3L); or 4–20 mA
Supply
S3L 5.0–6.5 VDC; 4–20 mA loop-powered options per datasheet
Wetted parts
PP or PVDF sensor body; FKM O-rings; PVDF rotor
Mounting
Integral mount paddlewheel flowmeter
Pipe Size Range
DN15 to DN200 (½ to 8 in.)
| المعامل | القيمة |
|---|---|
| Measuring range | 0.1 to 6 m/s (0.3 to 20 ft/s) |
| Output | Multi-function pulse / flow switch; Digital (S3L); or 4–20 mA |
| Supply | S3L 5.0–6.5 VDC; 4–20 mA loop-powered options per datasheet |
| Wetted parts | PP or PVDF sensor body; FKM O-rings; PVDF rotor |
| Mounting | Integral mount paddlewheel flowmeter |
| Pipe Size Range | DN15 to DN200 (½ to 8 in.) |
| Linearity | ±1% of max. range @ 25°C |
| Repeatability | ±0.5% of max. range @ 25°C |
| Operating Temperature | 0 to 65°C (32 to 149°F) ambient max 65°C |
| Features | Low-flow and low-power operating modes |
| Compatibility | GF 9900 / 9950 transmitters (S3L) |
