Laurel Electronics

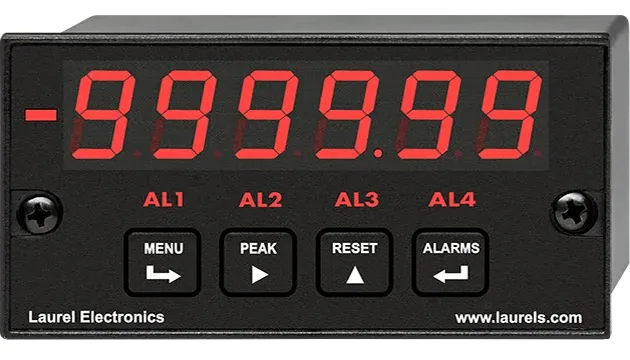

Laurel Electronics Laureate Ohm Panel Meter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
±0.01% of range ± 2 counts at 25 °C
Display
5-digit 14.2 mm (0.56") red or green LED
Type
1/8 DIN Laureate digital ohmmeter / resistance panel meter
Ranges
Five jumper-selectable ranges 20.000 Ω to 200.00 kΩ; factory specials 2 Ω / 2 MΩ / 20 MΩ
Resolution
1 mΩ on 20 Ω range (0.1 mΩ on 2 Ω special)
Connection
2-, 3- or 4-wire with lead-resistance compensation
| المعامل | القيمة |
|---|---|
| Accuracy | ±0.01% of range ± 2 counts at 25 °C |
| Display | 5-digit 14.2 mm (0.56") red or green LED |
| Type | 1/8 DIN Laureate digital ohmmeter / resistance panel meter |
| Ranges | Five jumper-selectable ranges 20.000 Ω to 200.00 kΩ; factory specials 2 Ω / 2 MΩ / 20 MΩ |
| Resolution | 1 mΩ on 20 Ω range (0.1 mΩ on 2 Ω special) |
| Connection | 2-, 3- or 4-wire with lead-resistance compensation |
| Update Rate | Up to 60 conversions per second |
| Power | Universal 85–264 Vac; optional 10–48 Vdc / 12–32 Vac |
| Enclosure | 1/8 DIN; NEMA 4X (IP65) from front when panel mounted |
| Options | Ethernet/USB/RS232/RS485; dual/quad relays; isolated analog 4–20 mA / 0–10 V |
| Feature | Front-panel USB-C setup; factory digital calibration in EEPROM |
