KEP

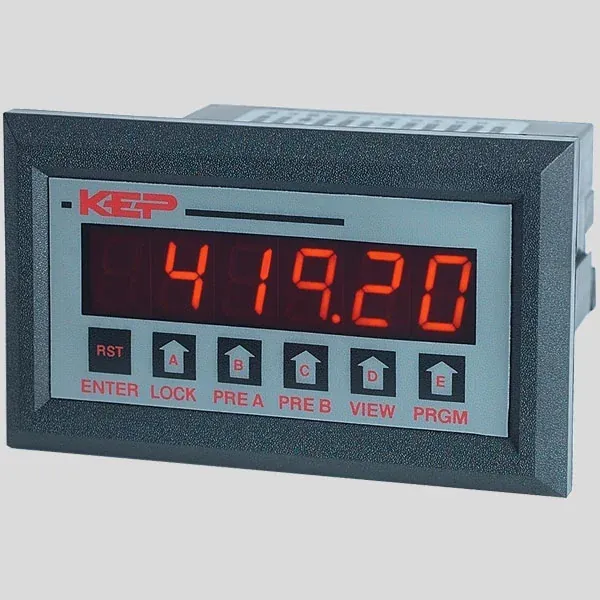

KEP INTELLECT-69 Ratemeter / Totalizer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
4–20 mA typically 0.05% FS (0.1% worst case); rate to 4.5 digits
Display
6-digit 0.55 in bright 7-segment LED; view rate, total, peak, valley
Type
Analog-input integrating ratemeter / totalizer (INTELLECT-69 / INT69)
Inputs
Field-selectable 0–20 mA, 4–20 mA, 0–5 V, 0–10 V, or 1–5 V; optional square-law
Input Impedance
Current 100 Ω; voltage 115 kΩ
Resolution
14.5 bits
| المعامل | القيمة |
|---|---|
| Accuracy | 4–20 mA typically 0.05% FS (0.1% worst case); rate to 4.5 digits |
| Display | 6-digit 0.55 in bright 7-segment LED; view rate, total, peak, valley |
| Type | Analog-input integrating ratemeter / totalizer (INTELLECT-69 / INT69) |
| Inputs | Field-selectable 0–20 mA, 4–20 mA, 0–5 V, 0–10 V, or 1–5 V; optional square-law |
| Input Impedance | Current 100 Ω; voltage 115 kΩ |
| Resolution | 14.5 bits |
| Power | 110/220 VAC ±15% or 12–24 VDC; max 300 mA DC or 10 VA AC |
| Control Outputs | Two open-collector sinks 250 mA from 30 VDC; optional Form C 5 A relays |
| Communications | Optional RS-232 / RS-422 |
| Analog Output | Optional 4–20 mA proportional to instantaneous rate |
| Housing | 1/8 DIN high-impact plastic case |
| Operating Temperature | +41 to +130 °F (+5 to +54 °C) |
| Memory | EEPROM retains program/count ≥10 years |
