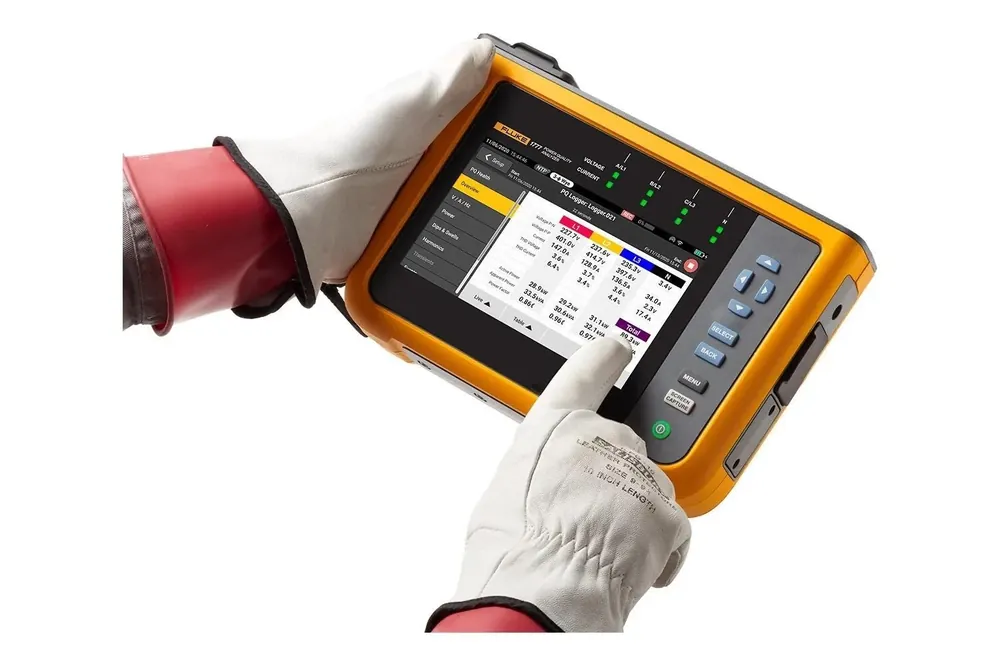

Fluke 1770 Series Three-Phase Power Quality Analyzers

SKU · 48771 · 1770 Series · العلامة: Fluke

متوفر

السعر عند الطلب

بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض

الكمية

طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.

المعاملات الرئيسية

Display

High-resolution color UI for V/A/Hz, power, dips/swells, harmonics, PQ health

Approvals

IEC 61000-4-30 Class A; CAT III 1000 V / CAT IV 600 V

Models

Fluke 1773 / 1775 / 1777 three-phase power quality analyzers

Voltage Inputs

4 inputs (3 phases + neutral to PE, 5 connectors); 1000 V CAT III / 600 V CAT IV

Max Voltage

1000 V rms / 1000 V dc (1700 Vpk); nominal Wye 50–1000 V, Delta 100–1000 V

Pq Standard

IEC 61000-4-30 Class A (edition 3; ready for edition 4 / EN 50160)

المعامل	القيمة
Display	High-resolution color UI for V/A/Hz, power, dips/swells, harmonics, PQ health
Approvals	IEC 61000-4-30 Class A; CAT III 1000 V / CAT IV 600 V
Models	Fluke 1773 / 1775 / 1777 three-phase power quality analyzers
Voltage Inputs	4 inputs (3 phases + neutral to PE, 5 connectors); 1000 V CAT III / 600 V CAT IV
Max Voltage	1000 V rms / 1000 V dc (1700 Vpk); nominal Wye 50–1000 V, Delta 100–1000 V
Pq Standard	IEC 61000-4-30 Class A (edition 3; ready for edition 4 / EN 50160)
Bandwidth	DC to 30 kHz PQ (excl. transients); 24-bit sync sampling; 80 kS/s at 50/60 Hz
Transients	±8 kV capture; 1775: 1 MS/s; 1777: 1 MS/s and 20 MS/s
Current Inputs	4 inputs (3 phases + neutral); auto range with Flex/clamp sensors
Harmonics	Up to 100 integer harmonics; higher-frequency harmonics to 30 kHz (1775/1777)
Power Supply	Powered from measured circuit; ~75 min internal battery backup
Software	Fluke Energy Analyze Plus; one-click EN 50160 / IEEE 519 / G5/5 reports
Special Features	Automatic measurement capture (>500 PQ parameters default); energy loss calculator
