Fluke Calibration

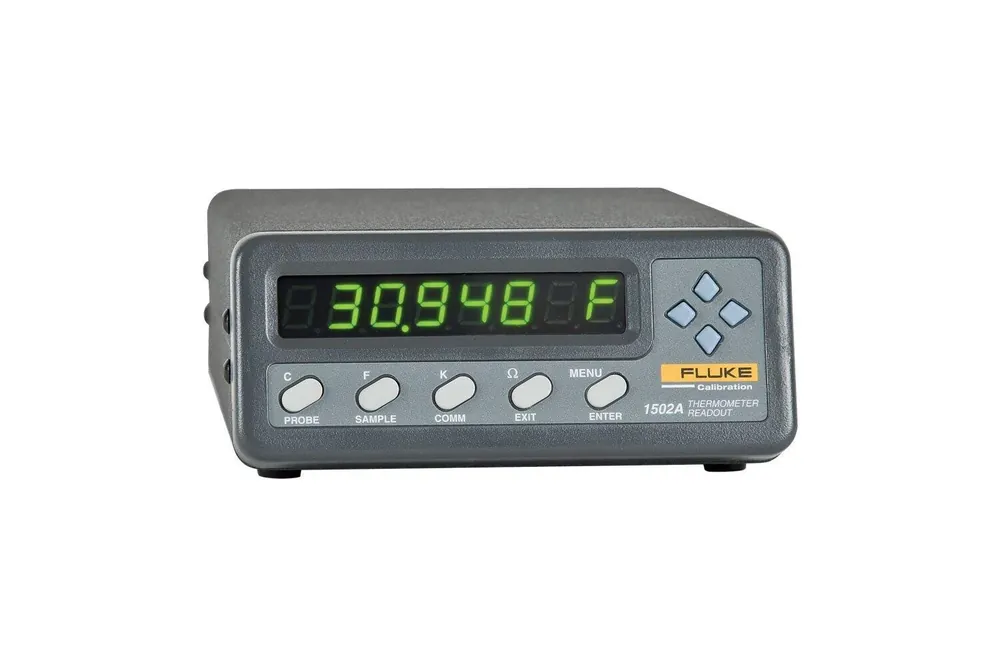

Fluke Calibration 1502A and 1504 Tweener
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
1502A up to +/-0.006 C; 1504 up to +/-0.002 C (typical published)
Type
Tweener thermometer readout (1502A PRT / 1504 thermistor)
Temperature Range
1502A -200 to 962 C (probe-limited); 1504 thermistor ranges
Temperature Resolution
1502A 0.001 C; 1504 0.0001 C
Resistance Range
1502A 0-400 ohm auto-ranging; 1504 0-1 MOhm auto-ranging
Probe Types
1502A RTD/PRT/SPRT (10/25/100 ohm); 1504 thermistors
| المعامل | القيمة |
|---|---|
| Accuracy | 1502A up to +/-0.006 C; 1504 up to +/-0.002 C (typical published) |
| Type | Tweener thermometer readout (1502A PRT / 1504 thermistor) |
| Temperature Range | 1502A -200 to 962 C (probe-limited); 1504 thermistor ranges |
| Temperature Resolution | 1502A 0.001 C; 1504 0.0001 C |
| Resistance Range | 1502A 0-400 ohm auto-ranging; 1504 0-1 MOhm auto-ranging |
| Probe Types | 1502A RTD/PRT/SPRT (10/25/100 ohm); 1504 thermistors |
| Characterizations | 1502A ITS-90 / IEC-751 CVD; 1504 Steinhart-Hart |
| Excitation Current | 1502A 0.5 and 1 mA selectable; 1504 2 and 10 uA auto |
| Interfaces | RS-232 standard; IEEE-488 optional |
| Power Options | 115/230 VAC; optional 12 V DC board / battery pack |
| Size Weight | 61 x 143 x 181 mm; about 1.0 kg |
| Document | Fluke Calibration Tweener Thermometer Readouts data sheet + 1502A user guide |
