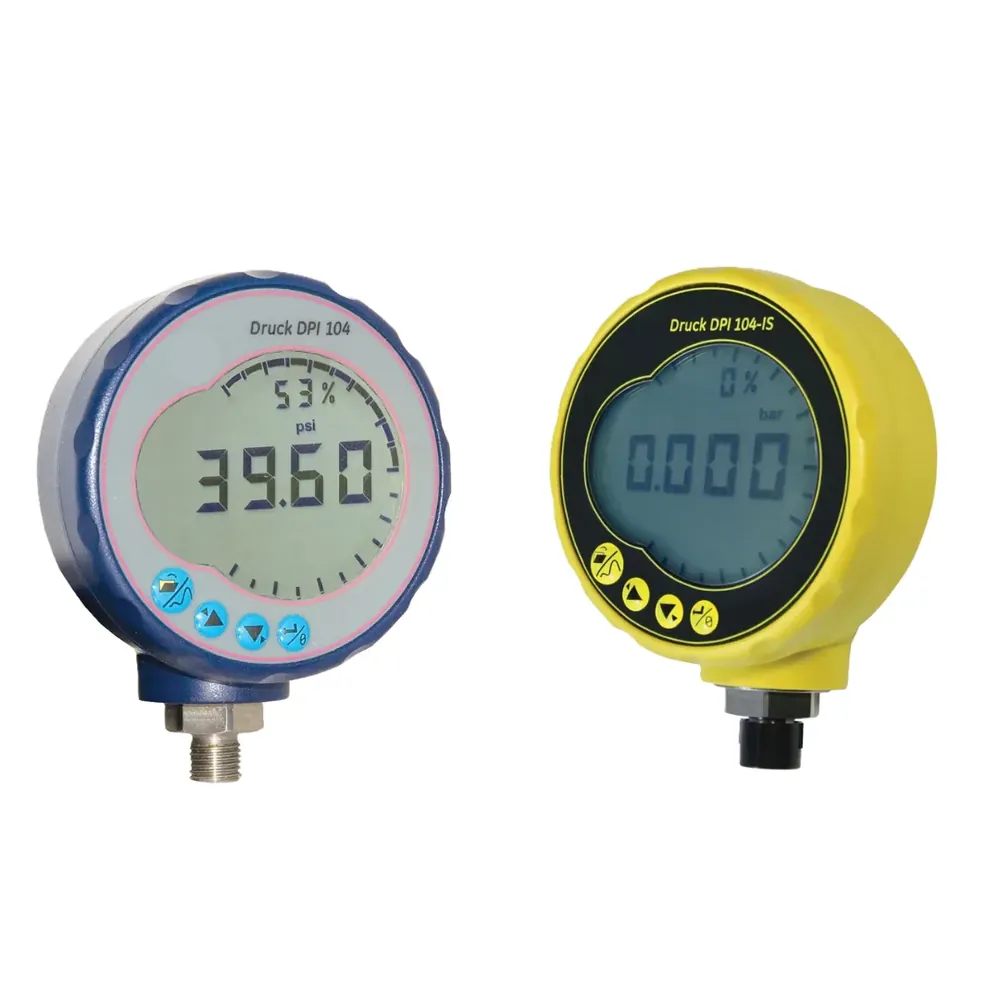

Druck DPI 104 Calibration Kit

SKU · 38402 · DPI 104 Calibration Kit · العلامة: Druck

متوفر

السعر عند الطلب

بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض

الكمية

تنزيل ورقة المواصفات PDF

طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.

المعاملات الرئيسية

Measuring range

DPI104 digital test gauge ranges to 1400 bar (20,000 psi); calibration kits pair gauge with PV210 (to 2 bar/30 psi), PV211 (to 20 bar/300 psi), PV212 hydraulic (to 1000 bar/15,000 psi), or PV411A pneumatic/hydraulic (to 700 bar/10,000 psi)

Accuracy

0.05% FS including non-linearity, hysteresis, repeatability and temperature effects −10 to +50 °C (0.15% FS on 700 mbar/10 psi range)

Output

0–5 V analog output (0.1% FS 50 mV–5 V); open-drain alarm FET; RS232 / IDOS interface

Supply

9 V alkaline battery (MN1604)

Process connection

G1/4 or 1/4 NPT male (≤700 bar / 10,000 psi); 9/16×18 UNF for ≥1000 bar / 15,000 psi

Electrical connection

Optional serial lead IA4090-2-V0 for RS232/PC

تنزيل ورقة المواصفات PDF

المعامل	القيمة
Measuring range	DPI104 digital test gauge ranges to 1400 bar (20,000 psi); calibration kits pair gauge with PV210 (to 2 bar/30 psi), PV211 (to 20 bar/300 psi), PV212 hydraulic (to 1000 bar/15,000 psi), or PV411A pneumatic/hydraulic (to 700 bar/10,000 psi)
Accuracy	0.05% FS including non-linearity, hysteresis, repeatability and temperature effects −10 to +50 °C (0.15% FS on 700 mbar/10 psi range)
Output	0–5 V analog output (0.1% FS 50 mV–5 V); open-drain alarm FET; RS232 / IDOS interface
Supply	9 V alkaline battery (MN1604)
Process connection	G1/4 or 1/4 NPT male (≤700 bar / 10,000 psi); 9/16×18 UNF for ≥1000 bar / 15,000 psi
Electrical connection	Optional serial lead IA4090-2-V0 for RS232/PC
Ambient temperature	Operating −10 to +50 °C (14 to 122 °F)
Display	5-digit LCD 0.5 in character height + 20-segment %FS bar graph
Approvals	CE; UKCA; ATEX/IECEx Ex ia IIC T4 (DPI104-IS)
Mounting	Handheld gauge (320° rotation on fitting) + transit-case pump kit
Sensor type	Advanced silicon sensor digital test gauge in hand-pump calibration kit
Notes	SKU maps to OEM DPI104 Series calibration kits (PV210/PV211/PV212/PV411A + DPI104/DPI104S). Specs from druck.com DPI104 Series datasheet BHCS38698B.
