Fluke

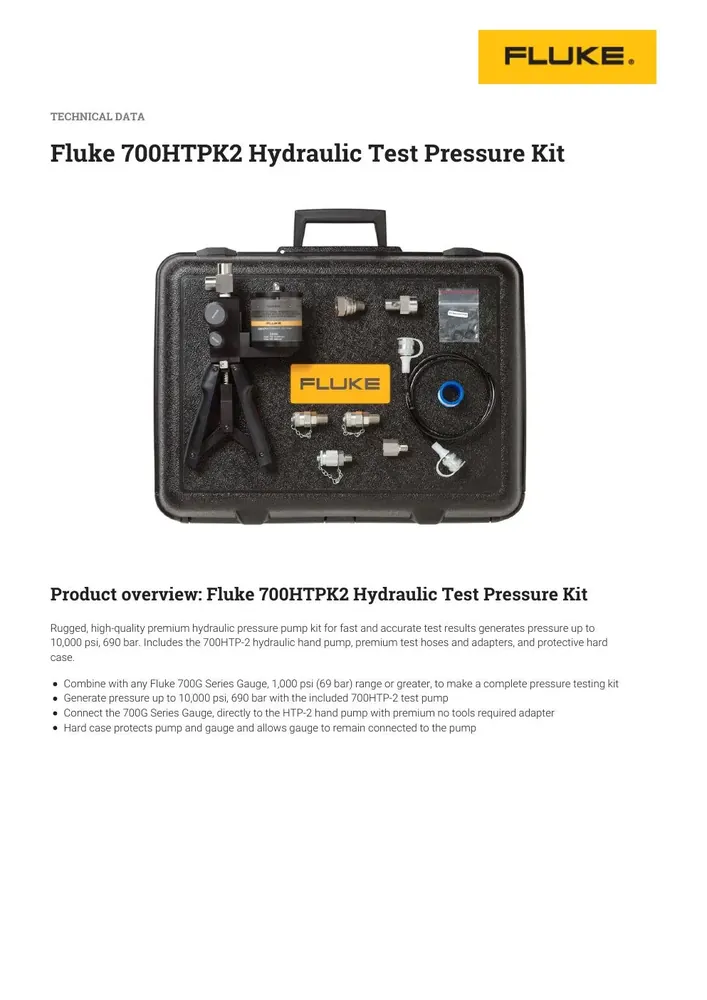

Fluke 700HTPK2 Premium Hydraulic Test Pressure Kit
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Wetted parts
303 stainless steel, aluminum, polyurethane, PTFE, nitrile, nylon
Kit Model
Fluke 700HTPK2 (P/N 4623314)
Max Pressure
10,000 psi (690 bar)
Pump Included
Fluke 700HTP-2 hydraulic hand pump
Hydraulic Media
Distilled water, mineral-based hydraulic oil, or up to hydraulic oil 100 (30 W)
Pump Dimensions
241 × 155 × 66 mm (9.5 × 6.1 × 2.6 in)
| المعامل | القيمة |
|---|---|
| Wetted parts | 303 stainless steel, aluminum, polyurethane, PTFE, nitrile, nylon |
| Kit Model | Fluke 700HTPK2 (P/N 4623314) |
| Max Pressure | 10,000 psi (690 bar) |
| Pump Included | Fluke 700HTP-2 hydraulic hand pump |
| Hydraulic Media | Distilled water, mineral-based hydraulic oil, or up to hydraulic oil 100 (30 W) |
| Pump Dimensions | 241 × 155 × 66 mm (9.5 × 6.1 × 2.6 in) |
| Pump Weight | 0.58 kg (1.29 lb) |
| Gauge Compatibility | Any Fluke 700G Series gauge, 1,000 psi (69 bar) range or greater |
| Hose Kit | Premium transmitter test hose kit and adapters (10,000 psi class) |
| Gauge Connector | Premium no-tools-required adapter for direct 700G connection |
| Case | Hard case; gauge may remain connected to pump |
| Ports Adapters | 1/4 in NPT tee; NPT/BSP adapter fittings included with pump |
| Fine Adjust | Vernier fine adjustment + pressure bleed on 700HTP-2 |
| Ordering Focus | Premium hydraulic kit for transmitter/gauge pressure testing to 10,000 psi |
