Fluke

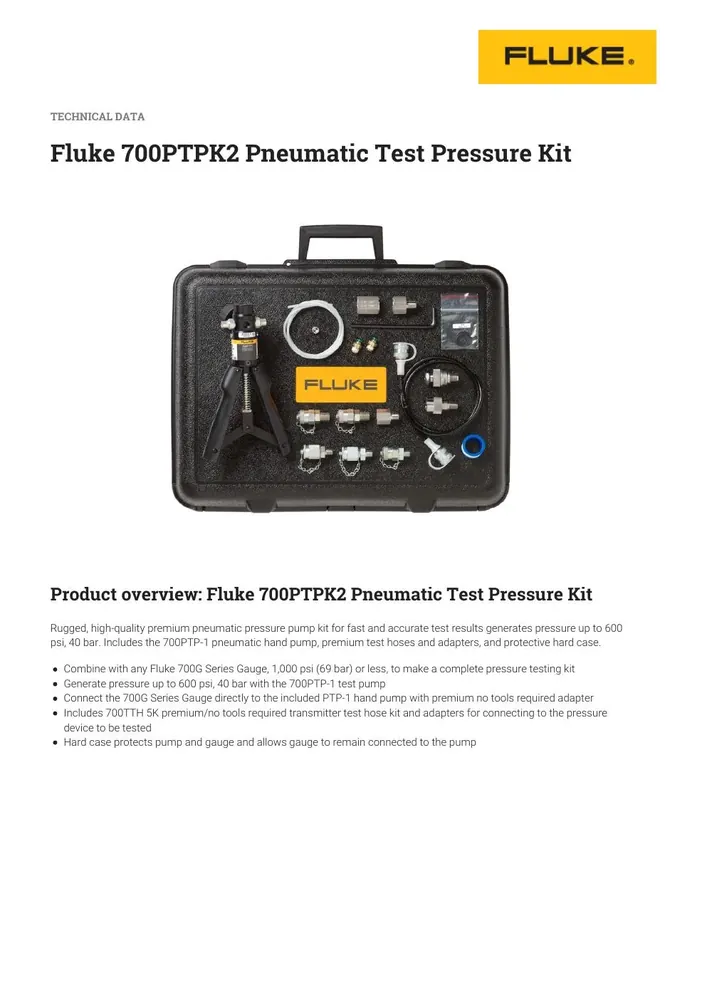

Fluke 700PTPK2 Premium Pneumatic Test Pressure Kit
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Wetted parts
Anodized aluminum, brass, nitrile, nylon
Kit Model
Fluke 700PTPK2 (P/N 4623306)
Pressure Range
Up to 600 psi (40 bar); vacuum to −0.96 bar (−13.9 psi) on 700PTP pump
Pump Included
Fluke 700PTP-1 pneumatic hand pump
Pump Dimensions
220 × 105 × 63 mm (8.66 × 4.13 × 2.48 in)
Pump Weight
650 g (1.43 lb)
| المعامل | القيمة |
|---|---|
| Wetted parts | Anodized aluminum, brass, nitrile, nylon |
| Kit Model | Fluke 700PTPK2 (P/N 4623306) |
| Pressure Range | Up to 600 psi (40 bar); vacuum to −0.96 bar (−13.9 psi) on 700PTP pump |
| Pump Included | Fluke 700PTP-1 pneumatic hand pump |
| Pump Dimensions | 220 × 105 × 63 mm (8.66 × 4.13 × 2.48 in) |
| Pump Weight | 650 g (1.43 lb) |
| Gauge Compatibility | Any Fluke 700G Series gauge, 1,000 psi (69 bar) or less |
| Hose Kit | 700TTH 5K premium no-tools-required transmitter test hose kit (5,000 psi rating) |
| Gauge Connector | Premium no-tools-required adapter for direct 700G connection |
| Case | Hard case; gauge may remain connected to pump |
| Fine Adjust | Fine adjustment knob + pressure/vacuum selector on 700PTP |
| Media | Air (pneumatic hand pump) |
| Ordering Focus | Premium pneumatic kit for transmitter/gauge pressure testing to 600 psi |
| Vacuum Capability | Hand-pump vacuum side to approximately −13.9 psi (−0.96 bar) |
