Ametek Crystal

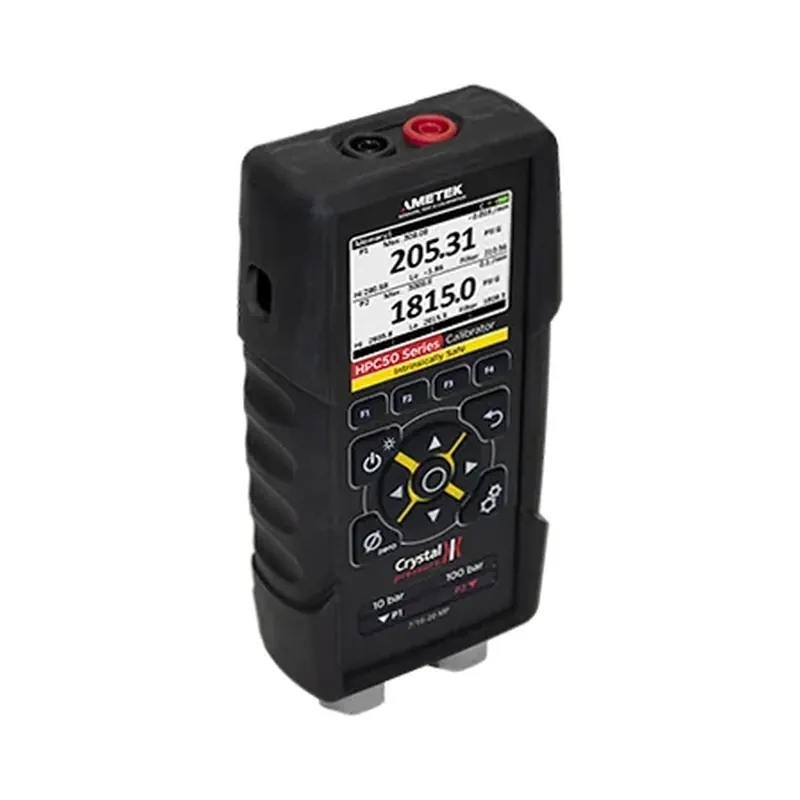

Ametek Crystal HPC50 Pressure Calibrator
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Type
Handheld intrinsically safe digital pressure calibrator (HPC50 Series)
Accuracy Pressure
±0.035% of reading (30–110% of range) at 18–28 °C; includes 1-year stability
Pressure Range
Vacuum to 10,000 psi / 700 bar depending on sensor; dual CPF ports
Modes
Gauge / absolute (BARO option) / differential (tare with equalizing valve)
Current
mA measure via Ø4 mm shielded banana jacks; mini-USB interface
Modules
Optional APMi external pressure modules and ATMi temperature modules
| المعامل | القيمة |
|---|---|
| Type | Handheld intrinsically safe digital pressure calibrator (HPC50 Series) |
| Accuracy Pressure | ±0.035% of reading (30–110% of range) at 18–28 °C; includes 1-year stability |
| Pressure Range | Vacuum to 10,000 psi / 700 bar depending on sensor; dual CPF ports |
| Modes | Gauge / absolute (BARO option) / differential (tare with equalizing valve) |
| Current | mA measure via Ø4 mm shielded banana jacks; mini-USB interface |
| Modules | Optional APMi external pressure modules and ATMi temperature modules |
| Operating Temperature | −20…50 °C compensated accuracy band (wider storage) |
| Ports | 7/16-20 MP CPF ports; 1/4 in NPT adapter included (BSP/M20 options) |
| Document | HPC50 Series psi datasheet + HPC50 Series operation manual |
| Application | Field transmitter calibration; pressure + mA indication; pump-system compatible |
| Design | Compact handheld; module connections for APMi/ATMi expansion |
| Certifications | Intrinsically safe variants per Crystal/Ametek Calibration documentation |
