Mensor (WIKA)

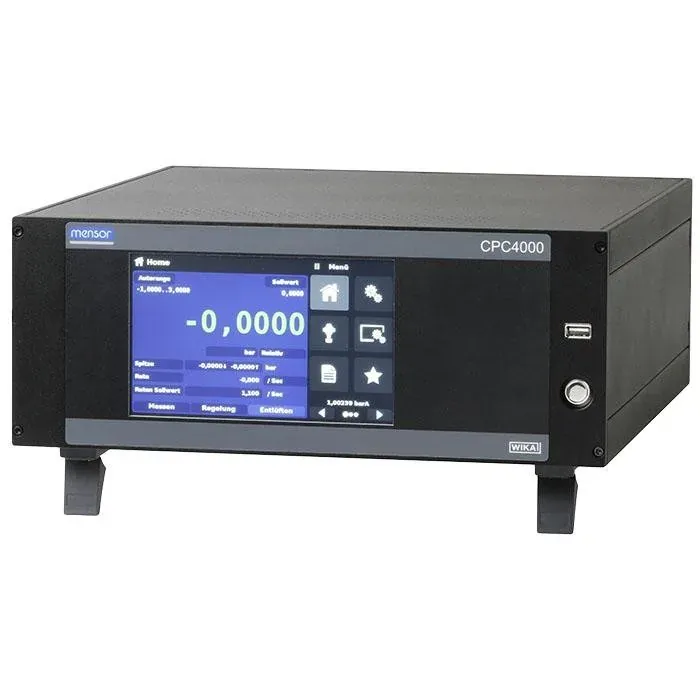

Mensor CPC4000 Industrial Pressure Controller
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
Down to 0.02% IS-50; optional 0.02% FS
Controller Type
Industrial pneumatic pressure controller; desktop or 19" rack
Pressure Ranges
-1 ... 210 bar (-15 ... 3,045 psi) gauge/bi-directional/absolute
Precision
0.008% FS
Control Stability
< 0.005% FS (catalog)
Reference Transducers
Up to two CPR4000; optional barometric reference
| المعامل | القيمة |
|---|---|
| Accuracy | Down to 0.02% IS-50; optional 0.02% FS |
| Controller Type | Industrial pneumatic pressure controller; desktop or 19" rack |
| Pressure Ranges | -1 ... 210 bar (-15 ... 3,045 psi) gauge/bi-directional/absolute |
| Precision | 0.008% FS |
| Control Stability | < 0.005% FS (catalog) |
| Reference Transducers | Up to two CPR4000; optional barometric reference |
| Interfaces | IEEE-488, RS-232, USB, Ethernet; Mensor/SCPI |
| Special Modes | Leak test and burst test applications; optional contamination prevention |
| Ports | 7/16-20 UNF measure/control/supply/exhaust; 10-32 UNF barometer |
| Pressure Units | Multiple engineering units incl. bar, psi, kPa, MPa, inH2O, inHg |
| Calibration Interval | 365 days |
| Datasheet | WIKA CT 27.40 |
